Chapter 5 Towards Green Energy Solutions

I

II

III

Coal

Thermal energy

Thermal plant

Uranium

Nuclear energy

Nuclear power plant

Water reservoir

Potential energy

Hydroelectric plant

Wind

Kinetic energy

Wind electricity plant

(2) Problems associated with power 8enerations by thermal power plant:
(a) Air pollution: Due to burning of coal, there is emission of carbon dioxide, carbon monoxide, sulphur dioxide and nitrogen dioxide gases. These are harmful and toxic to health.
(b) Soot particles emitted during combustion can cause severe respiratory problems such as asthma.

b. ………. energy is a renewable source of energy.
Answer:
wind energy is a renewable source of energy.

c.Solar energy can be called ……. energy.
Answer:
Solar energy can be called clean energy.

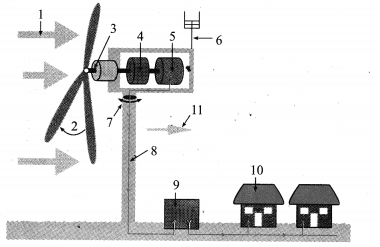

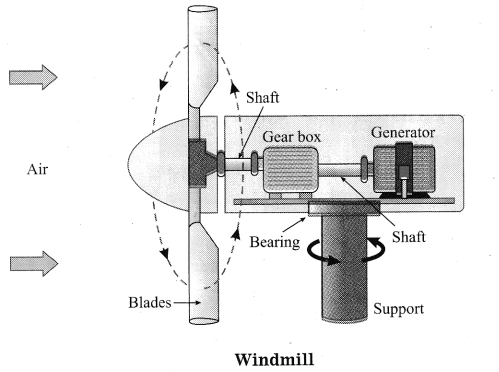

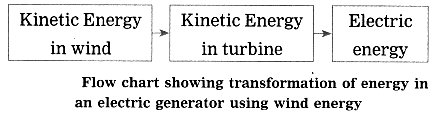

d. ……. energy of wind is used in wind mills.
Answer:
kinetic energy of wind is used in wind mills.

e. ………. energy of water in darns is used for generation of electricity.
Answer:
Potential energy of water in darns is used for generation of electricity.

Non-conventional Sources of energy:

b. Thermal electricity generation and Solar thermal electricity generation.
Answer:
Thermal electricity generation:

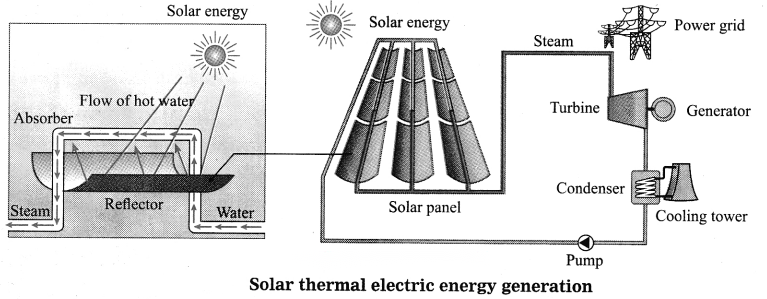

Solar thermal electricity generation:

Moreover, the fossil fuels are non-renewable and exhaustible fuels. They have to be explored from the
deeper layers of the earth causing lots of environmental problems. Green energy is sustainable, renewable and abundant. It never creates any environmental problems and is non-polluting. Thus, energy obtained from fossil fuels is not at all a green energy.

b. Saving energy is the need of the hour.
Answer:
In modern civilization, continuous energy supply is needed for the technology and development. The energy has become a basic need for man. Most of the energy used in India is obtained from thermal power plant. For this energy generation, various fuels are used. The coal and fossil fuels are limited. Due to over-exploitation, these reserves are getting fast depleted. Use of fossil fuels is also resulting in pollution and climate change.

Nuclear energy can be very hazardous. Lot of research is being done in the field of green energy, but the tremendous human population always is in need of more energy. Therefore, each and every person should save the energy, as saving energy is the need of the hour.

b. What are the advantages and limitations of solar energy?
Answer:
I. Advantages:

II. Limitations:

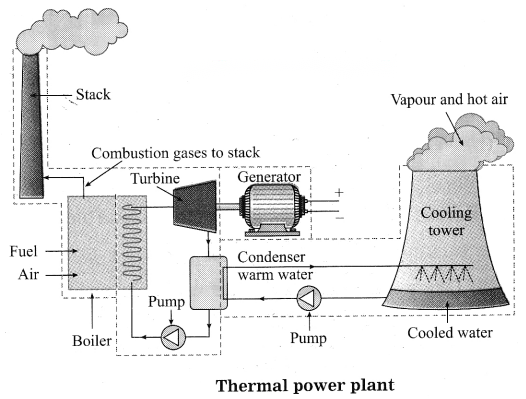

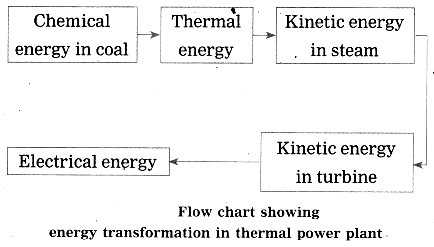

The generators connected to turbines produce electrical energy. The steam is condensed in a condenser and converted back into water. In this way in thermal power plant, thermal energy to kinetic energy, kinetic energy into mechanical energy and mechanical energy to electrical energy, are the conversions that take place.

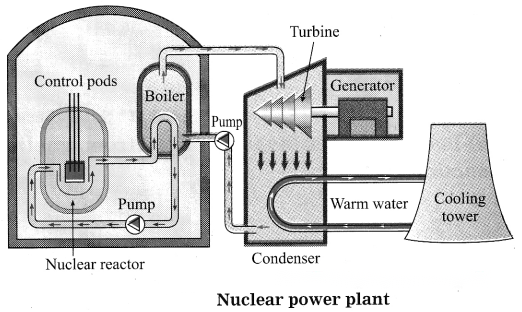

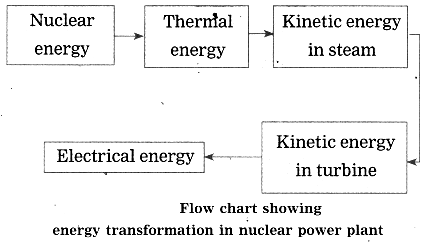

b. Nuclear power plant.
Answer:

In nuclear power plant, the energy is releasdd by fission of nuclei of atbms like Uranium or Plutonium. This energy is used to generate the steam or high temperature ind high pressure. The kinetic energy in the steam rotates the turbine. The turbine in turn drives the generator to produce electricity.

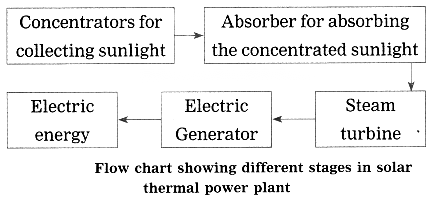

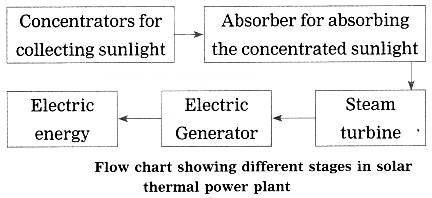

c. Solar thermal power plant.
Answer:

Solar radiation is used to produce thermal energy. For this purpose, many reflectors are used which concentrate the solar radiation on absorbers. The heat energy created due to solar radiations is used to make steam. The steam possesses kinetic energy. This kinetic energy drives turbine and generator. The electrical energy is thus created from this kinetic energy.

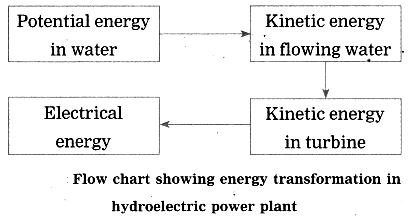

d. Hydroelectric power plant:
Answer:

In hydroelectric plant the water stored in the reservoir is used as a source or potential energy. This water is made to fall at a great speed and hence there is production of kinetic energy in flowing water. This fast flowing water ralling down from the reservoir is brought to the turbine at the lower levels. The kinetic energy of the flowing water in turn drives the turbine, The turbine then drives the generator and electrical energy is produced.

b. It is absolutely necessary to control the fission reaction in nuclear power plants.
Answer:

c. Hydroelectric energy, solar energy and wind energy are called renewable energies. (July ’19, Board’s Model Activity Sheet)
Answer:

d. It is possible to produce energy from mW to MW using solar photovoltaic cells.
Answer:

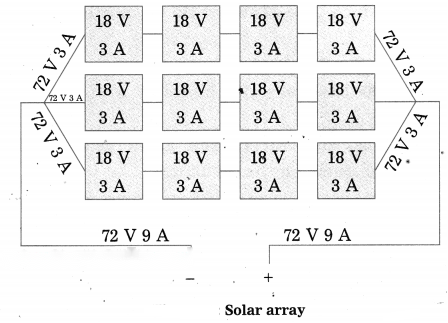

b. One solar panel produces a potential difference of 18 V and current of 3A. Describe how you can obtain a potential difference of 72 Volts and current of 9 A with a solar array using solar panels. You can use sign of a battery for a solar panel.
Answer:
Given Potential difference is 18 V and current is 3A. The requirement is potential difference of 72 V and current is 9A Voltage remains the same if connected in parallel and gets added it they are connected in series. Current remains the same if connected in series but adds if connected in parallel.

(1) The burning of fossil fuels cause air pollution. The incomplete combustion of fossil fuels cause release of carbon monoxide. Some more toxic gases and soot particles cause various respiratory diseases. The carbon dioxide produced is creating global warming and climate change. The nitrogen dioxide released through burning is responsible for acid rains.

(2) Fossil fuels are limited. They are getting fast depleted. It has taken millions of years for the fossil fuels to form. The exploration of such fuels also cause environmental degradation and marine pollution too.

(3) In production of nuclear energy, there is a great risk of accidents. The safe disposal of nuclear waste is also a problem.

(4) Hydroelectric power from water reservoirs, wind power from wind, solar energy from sun and electricity from biofuels are eco-friendly alternatives.

Projects: (Do it your self)

Project 1.

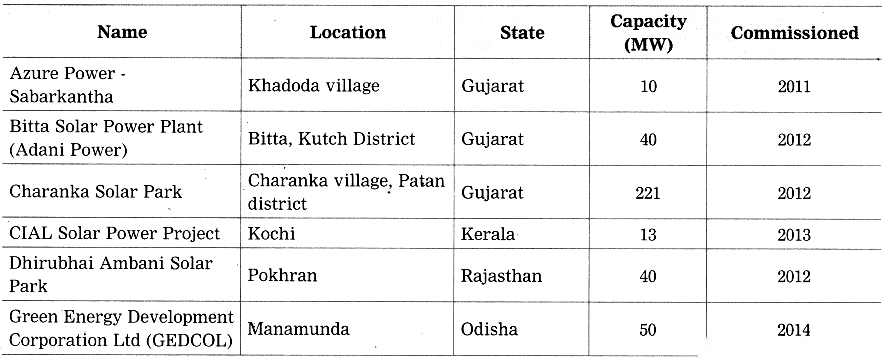

Gather information about solar light, solar water heating system and solar cooker.

Project2.
Gather information about a power plant near your locality by visiting the plant.

Can you recall? (Text Book Page No. 47)

Use your brain power! (Text Book Page No. 54)

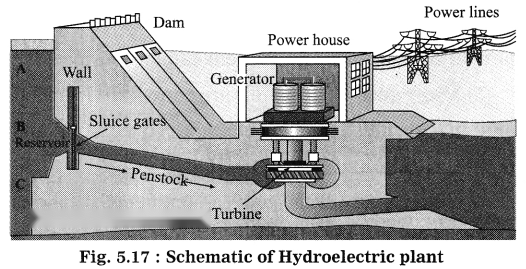

(ii) What will be the effect on electricity generation, if the channel taking water to turbine starts at point A?
Answer:
If the channel taking water to turbine starts at point A, then the water will flow with a greater speed. Since point A is at hSight, water will acquire speed. This will result into more efficient rotation of the blades of turbine. The electricity generation will thus become more efficient.

(iii) What will be the effect on electricity generation, if the channel taking water to turbine starts at point C?
Answer:
If the channel taking water to turbine starts at point C, it will affect the electricity generation adversely. Point C is on the lower height as compared to the channel that carries water to the turbine. The flow of the water thus will be affected resulting into improper rotation of blades of turbine. This will certainly affect the electricity generation.

Choose the correct alternative and write its alphabet against the sub-question number:

State whether the following statements are true or false with proper explanation:

Match the columns:

Column I

Column II

(1) Polluting energy

(a) Soot particles

(2) Eco-friendly energy

(b) Thermal energy

(c) Nuclear energy

(d) Wind energy

Type of energy

Problem

(1) Nuclear energy

(a) Rehabilitation of displaced people

(2) Natural gas

(b) Rainy season and darkness

(c) Limited reserves

(d) Disposal of wastes

Find the odd one out:

Explain with diagram step-by-step energy conversion in:

Explain the following questions in detail:

Complete the paragraph by choosing the appropriate words given in the brackets:

Read the paragraph and answer the questions given below:

1. Renewable energy is, energy produced from sources that do not deplete or can be replenished within a human’s life time. The most common examples include wind, solar, geothermal, biorhass, and hydroelectric power. This is in contrast to non-renewable sources such as fossil fuels. Most renewable energy is derived directly or indirectly from the sun. Sunlight can be captured directly using solar technologies. The sun’s heat drives winds, whose energy is captured with turbines. Plants also rely on the sun to grow and their stored energy can be utilized for bioenergy. Not all renewable energy sources rely on the sun. For example, geothermal energy utilizes the Earth’s internal heat, tidal energy relies on the gravitational pull of the moon, and hydroelectric power relies on the flow of water.

Questions and Answers :
Question1.
What is renewable energy?
Answer:
Renewable energy is energy that is produced from sources which will not get exhausted within a human’s life time.

2. Read the information given below and solve the questions based on it.
Electric energy is produced in various ways like hydroelectric, wind power, solar energy, bio-fuel, etc. These energy sources are inexhaustible, sustainable. Besides, it does not cause any environmental problem.

Questions and Answers:
Question 1.
Above information is about which type of energy?
Answer:
From the above information, we understand about green energy.

Diagram based questions:

(ii) Give one advantage and one disadvantage of this energy.
Answer:
Advantage of Solar energy: Solar energy is eco-friendly which does not create pollution. It is boundless source.
Disadvantage of solar energy: Solar energy is available only when sun is in the sky. Therefore, it has to be stored in batteries.

(b) Write briefly the work of this device.
Answer:

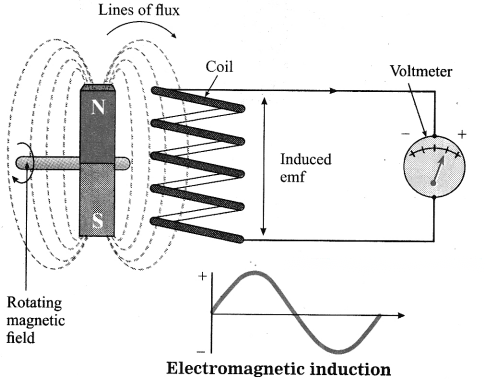

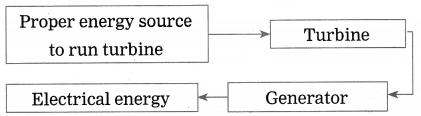

Turbine is a device with the blades. When the flow of liquid or gases is directed on the blades of the turbine, they rotate. The rotation produces kinetic energy. This turbine is then used to rotate the magnet in the electric generator. For this purpose, turbines are connected with the generators. The magnets rotate and produce electric energy by electromagnetic induction. The turbines working on steam are used in large commercial power generation plants.

(b) Where is this reaction used?
Answer:
This reaction is used in nuclear power plants where electricity is generated.

(c) Which element is used in it?
Answer:
Uranium-235 is used in the nuclear fission reactions.

(OR)

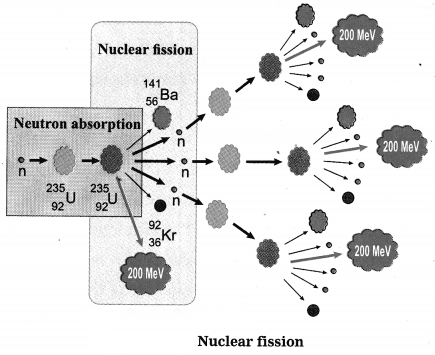

Identify the process shown in figure and name it. (March 2019)
Answer:
The above figure shows nuclear fission chain reaction of Uranium – 236.

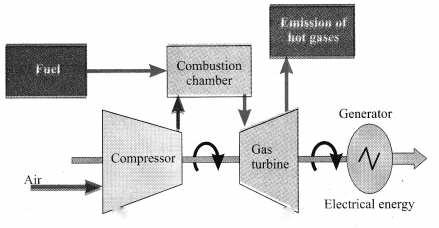

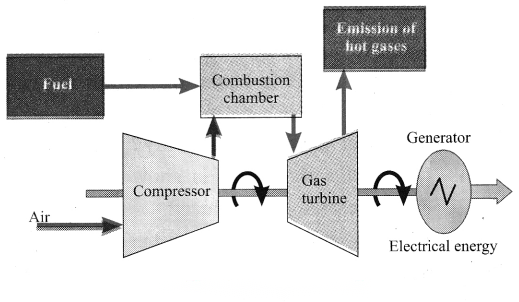

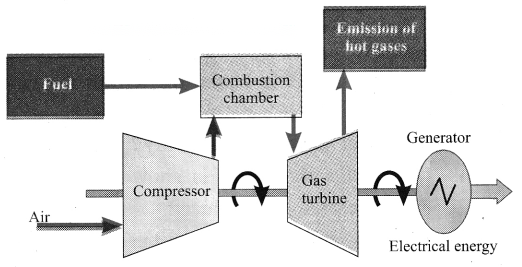

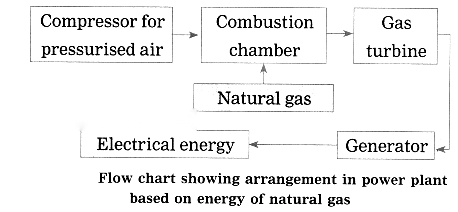

(b) State its source.
Answer:
The energy is generated from natural gas.

(c) Which is more eco-friendly – Power generation from coal or Power generation from natural gas? Why?
Answer:
Power generation from natural gas is more eco-friendly. Natural gas does not contain sulfur and hence its burning does not cause major pollution by forming sulphur dioxide. The efficiency of power generation by natural gas is also high.

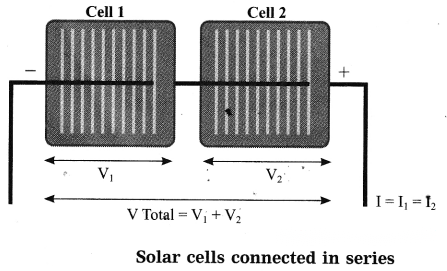

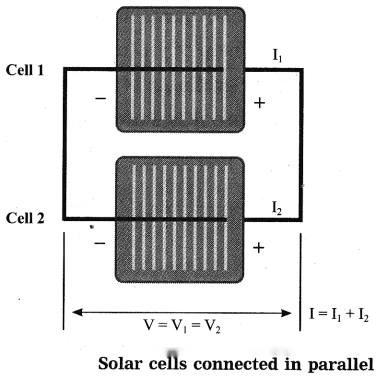

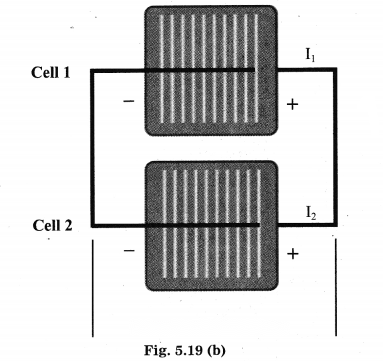

(b) Solar cells in parallel.
Answer:

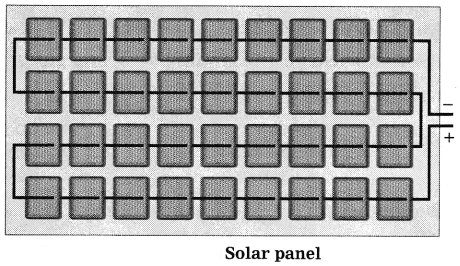

(c) Solar panel.
Answer:

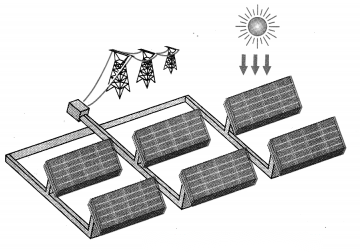

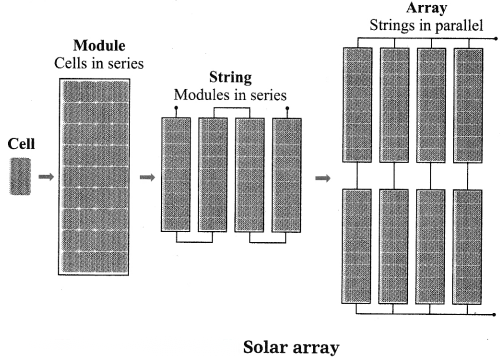

(d) Solar array.
Answer:

Activity based questions.

Project:

Project 1.
Let’s Discuss: (Text Book Page No. 47)
Make a list of the work that we do in our day-to-day life using energy. Which forms of energy do we use to do this work? Discuss with your friends.

Project 2.
Compare: (Text Book Page No. 51)
Observe the schematic of thermal power plant and the nuclear power plant. Discuss what are the similarities and differences between the two.

Project 3.
Use of ICT: (Text Book Page No. 49)
Prepare a presentation about thermal power plant using computerized presentation, animation, video, pictures, etc. Send it to others and upload on YouTube.

Project 4.
Internet is my friend: (Text Book Page No. 51)
Complete the following table for some important nuclear power plants in India.
