Balbharati Maharashtra State Board12th Commerce Maths Solution Book PdfChapter 7 Assignment Problem and Sequencing Ex 7.1 Questions and Answers.
Maharashtra State Board 12th Commerce Maths Solutions Chapter 7 Assignment Problem and Sequencing Ex 7.1
Question 1
Maharashtra Board Solution

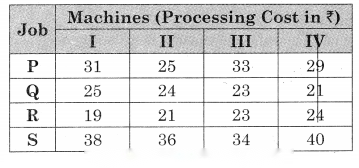

A job production unit has four jobs A, B, C, D which can be manufactured on each of the four machine P, Q, R and S. The processing cost of each job for each machine is given in the following table: Find the optimal assignment to minimize the total processing cost.
Solution & Step-by-Step Answer:

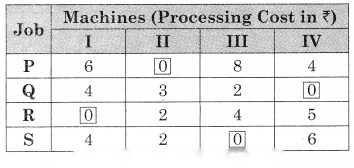

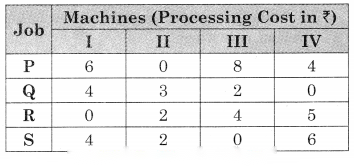

The cost matrix is given by Subtracting row minimum from all the elements in that row we get Subtracting column minimum from all the elements in that column we get the same matrix. As all the rows and columns have single zeros the allotment can be done as follows. As per the table, the job allotments are P → II, Q → IV, R → I, S → III The total minimum cost = 25 + 21 + 19 + 34 = ₹ 99
Question 2
Maharashtra Board Solution

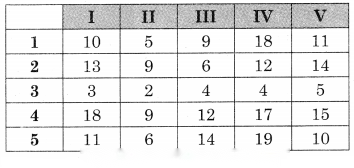

Five wagons are available at stations 1, 2, 3, 4, and 5. These are required at 5 stations I, II, III, IV, and V. The mileage between various stations are given in the table below. How should the wagons be transported so as to minimize the mileage covered?
Solution & Step-by-Step Answer:

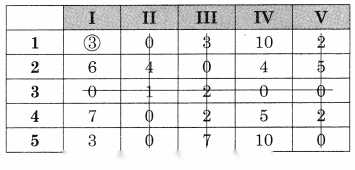

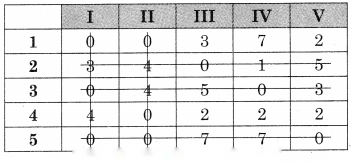

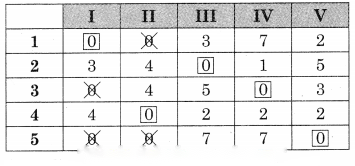

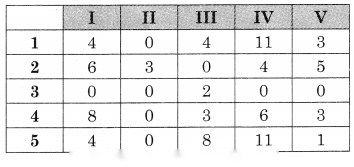

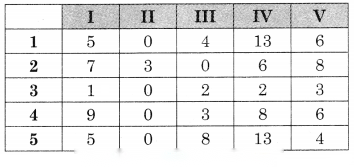

The mileage matrix is given by Subtracting row minimum from all elements in that row we get Subtracting column minimum from all elements in that column we get Draw minimum lines covering all the zeros The number of lines covering all the zeros (3) is less than the order of the matrix (5). Hence an assignment is not possible. The modification is required. The minimum uncovered value 1 is subtracted from uncovered values and added to the values at the intersection. The numbers on the lines remain the same we get Drawing a minimum number of lines covering all the zeros. No. of lines covering all the zeros (4) is less than the order of the matrix (5). Hence assignment is not possible. Again modification is required. The minimum uncovered value 3 is subtracted from the uncovered values and added to the values at the intersection. The numbers on the lines remain the same we get No. of lines covering all the zeros (5) are equal to the order of the matrix so the assignment is possible. According to the table the assignment is 1 → I, 2 → II, 3 → IV, 4 → II, 5 → V Total minimum mileage = 10 + 6 + 4 + 9 + 10 = 39 units
Question 3
Maharashtra Board Solution
Five different machines can do any of the five required jobs, with different profits five required jobs, with different profits resulting from each assignment as shown below: Find the optimal assignment schedule.
Solution & Step-by-Step Answer:

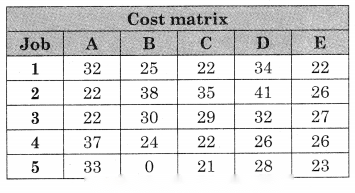

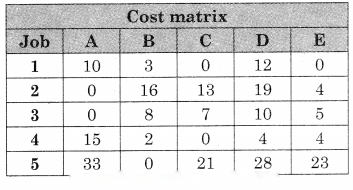

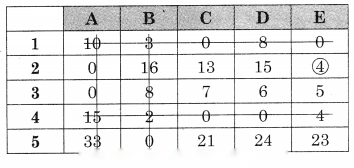

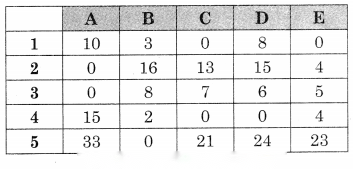

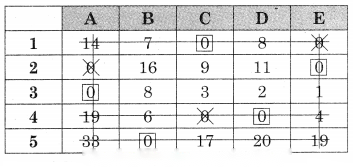

This profit matrix has to be reduced to cost matrix by subtracting all the values of the matrix from the largest value (62) we get Subtracting row minimum value from all the elements in that column we get Subtracting column minimum from all the elements in that column we get Drawing minimum lines covering all zeros we get No. of lines (4) is less than the order of the matrix (5). Hence assignment is not possible. The modification is required. The minimum uncovered value (4) is subtracted from the uncovered value and added to the values at the intersection. The values on the lines remain the same, we get No. of lines (5) are equal to the order of the matrix (5). So assignments are possible 1 → C, 2 → E, 3 → A, 4 → D, 5 → B For the minimum profit look at the corresponding in the profit matrix given. Maximum profit = 40 + 36 + 40 + 36 + 62 = 214 units
Question 4
Maharashtra Board Solution
Four new machines M1, M2, M3, and M4 are to be installed in a machine shop. There are five vacant places A, B, C, D, and E available. Because of limited space, machine M2 cannot be placed at C and M1 cannot be placed at A. The cost matrix is given below. Find the optimal assignment schedule.
Solution & Step-by-Step Answer:

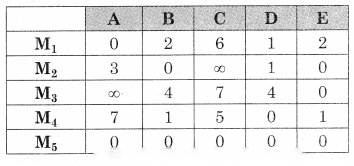

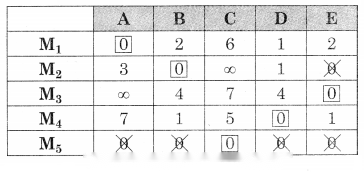

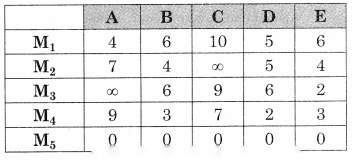

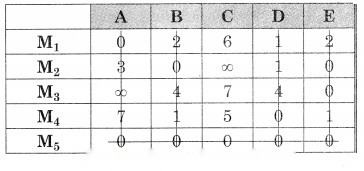

This is a restricted assignment so we assign a very high cost ‘∞’ to the prohibited all. Also as it is an unbalanced problem we add a dummy row M5 with all values as ‘0’, we get Subtracting row minimum from all the elements in that row, we get Subtracting column minimum from all the elements in that column we get the same matrix. As minimum no. of lines covering all zeros (5) is equal to the order of the matrix, Assignment is possible The assignments are given by M1 → A, M2 → B, M3 → E, M4 → D, M5 → C As M5 is dummy no machine is installed at C For minimum cost taking the corresponding values in the cost matrix we get Minimum cost = 4 + 4 + 2 + 2 = 12 units
Question 5
Maharashtra Board Solution
A company has a team of four salesmen and there is four districts where the company wants to start its business. After taking into account the capabilities of salesmen and the nature of districts, the company estimates that the profit per day in rupees for each salesman in each district is as below: Find the assignments of a salesman to various districts which will yield maximum profit.
Solution & Step-by-Step Answer:

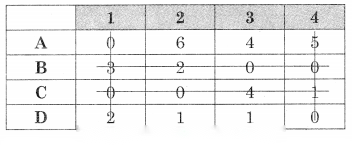

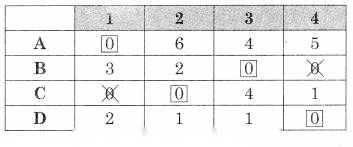

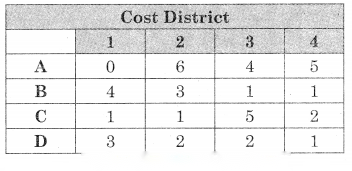

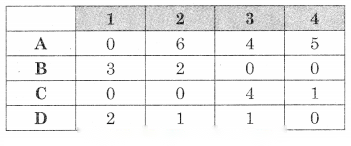

The profit matrix has to be reduced to the cost matrix. Subtracting all the values from the maximum value (16) we get Subtracting row minimum from all values in that row we get Subtracting column minimum from each column we get the same matrix As minimum no. of lines covering all zeros (4) is equal to the order of the matrix (4) Assignment is possible ∴ A → 1, B → 3, C → 2, D → 4 For maximum profit, we take the corresponding values in the profit matrix. We get Maximum profit = 16 + 15 + 15 + 15 = ₹ 61
Question 6
Maharashtra Board Solution

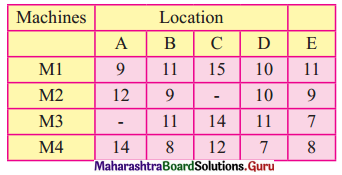

In the modification of a plant layout of a factory four new machines M1, M2, M3, and M4 are to be installed in a machine shop. There are five vacant places A, B, C, D, and E available. Because of limited space, machine M2 can not be placed at C and M3 can not be placed at A the cost of locating a machine at a place (in hundred rupees) is as follows. Find the optimal assignment schedule.
Solution & Step-by-Step Answer:

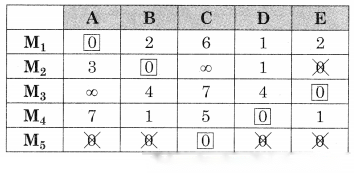

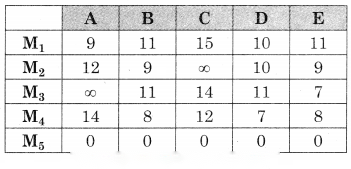

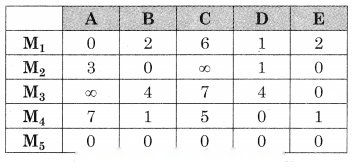

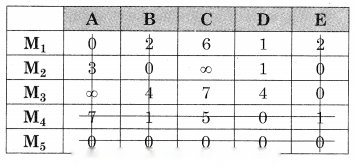

This is an unbalanced problem so we add a dummy row M5 with all values as ‘0’. Also, this is on restricted assignment problem. So we assign a very high-cost W to the prohibited cells we have Subtracting row minimum from all values in that row we get Subtracting column minimum from all values in that column we get the same matrix As minimum no. of lines covering all zeros (5) is equal to the order of the matrix (5) assignment is possible. The assignment is M1 → A, M2 → B, M3 → E, M4 → D, M5 → C As M5 is dummy, no machine is installed at C. The minimum cost is found by taking the corresponding values in the cost matrix Minimum cost = 9 + 9 + 7 + 7 + 0 = 32 (in hundred ₹)
