Question 1

Question 1: How can the distribution of the height and landform in a region be shown?

Accepted Answer

(i) While studying different landforms on the surface of the earth, one has to consider various facets of landforms like altitude, relief, slope, direction of slope and the drainage. (ii) For this maps prepared using mathematical survey methods are used. (iii) These maps help us to understand the ab

Question 2

Question 2: To whom are contour maps useful?

Accepted Answer

(i) Contour maps are useful to mountaineers, trekkers, soldiers, defence officers. (ii) The nature of the ground and its shape can be estimated. (iii) Defence officers use contour maps for strategic planning. (iv) It is possible to identify suitable site for any project from the contour map of the r

Question 3

Question 3: What do you understand by observing contour lines?

Accepted Answer

(i) Contour lines are isolines of height. (ii) These are drawn by joining the places of equal altitude. (iii) These help in identification of land forms and their altitude from sea level. (iv) These lines also help us to understand the nature and direction of the slope.

Question 4

Question 4: How will a contour map be useful to a fanner?

Accepted Answer

(i) It is helpful selecting the type of farming to be practiced plantation farming in hilly regions, intensive farming in low lying region. (ii) In order to reduce the erosion of soil, trenches are dug out in the direction perpendicular to the slope of the land. (iii) Trees are planted along such tr

Question 5

Question 1: If the contour lines are closer to each other, the slope is ______.

Accepted Answer

steep

Question 6

Question 2: The contour lines on the map represent ______.

Accepted Answer

places of same altitude

Question 7

Question 3: The slope can be understood from the distance between the ______.

Accepted Answer

contour lines

Question 8

Question 4: If the distance between two contour lines is more then the ______ is gentle.

Accepted Answer

slope

Question 9

Question 2: Which colours have been used on them?

Accepted Answer

Yellow & blue colours have been used in the model.

Question 10

Question 1: What all you seen in the map?

Accepted Answer

We can see many contour lines on the map showing a hilly region. We can see the altitude of the hill ranges as well as its slope.

Question 11

Question 2: What is the general direction of the ranges shown in the map?

Accepted Answer

The general direction of the ranges shown in the map is east-west

Question 12

Question 3: Towards which direction is the flat land located in the map?

Accepted Answer

The flat land is located towards the east.

Question 13

Question 4: What are the maximum and minimum values of the lines in the map?

Accepted Answer

The maximum value of the lines in the map is 800 & minimum value is 600.

Question 14

Question 5: What do these values indicate?

Accepted Answer

These lines indicate the altitude of the region from the sea level.

Question 15

Question 6: Do you find any similarities in the map and the model in fig. (a)? What are those?

Accepted Answer

The model in figure (a) & the contour line map in figure (b) are of the same region. The values of latitudes & longitudes are same on both the maps.

Question 16

Question 7: Which figure give us more information and what is that information?

Accepted Answer

Fig. (b) Contour line map gives more information. It gives us information about the altitude of the landforms slope of the land forms with latitudes & longitudes

Question 17

Question 8: Is there any similarity between this map and the sketch map of the potato hill?

Accepted Answer

Yes, similar to the sketch map of the potato hill, the contour line map too is a 3D figure (Model of earth’s surface) which has been converted into a 2D map. The Contour line map is depicting contour line intervals.

Question 18

Question 1: Contour lines join places with the same on a map.

Accepted Answer

altitude

Question 19

Question 2: Generally, contour lines do not _______ each other.

Accepted Answer

cross.

Question 20

Question 1: How are contour maps helpful to us?

Accepted Answer

(i) Contour maps help us to understand various facets of landforms, like altitude, relief, slope, direction of slope and the drainage. (ii) These maps are of immense use to mountaineers, trekkers, soldiers, defence officers, etc. (iii) These maps prove to be of great use in planning of a region.

Question 21

Question 2: Contour lines generally do not cross each other. Give reason.

Accepted Answer

(i) Contour lines join places with the same altitude on a map. (ii) Therefore they generally do not cross each other.

Question 22

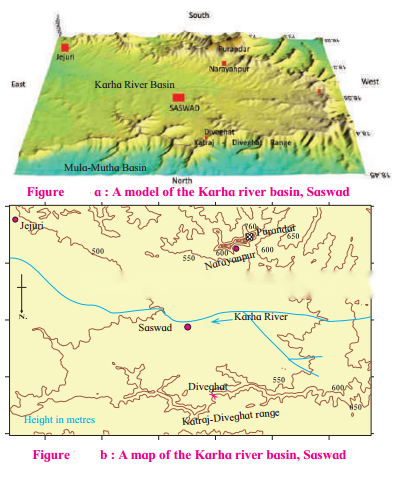

Question 1: In which direction does fort Purandar lie?

Accepted Answer

Fort Purandar lies in the south direction.

Question 23

Question 2: What is the direction of flow of the river Karha?

Accepted Answer

River Karha flows from west to east.

Question 24

Question 3: In which parts are the hill ranges not observed?

Accepted Answer

The hill ranges are not observed in the eastern parts.

Question 25

Question 4: Which part of the model is not seen in the map? Why?

Accepted Answer

The Karha river & the direction of its flow, the contour height and the slope of the land are part of map & not seen in the model.

Question 26

Question 5: In which direction does the altitude of Katraj- Diveghat range decrease?

Accepted Answer

The altitude of katraj-Diveghat range decreases from west to east.

Question 27

Question 6: In which direction are higher hill ranges located?

Accepted Answer

Higher hill ranges are located in the southern direction.

Chapter 11 Contour Maps and Landforms Solutions
