Chapter 7 Elements of Groups 16, 17 and 18

Chapter 7 Elements of Groups 16, 17 and 18

1. Select appropriate answers for the following.

Question i.
Which of the following has the highest electron gain enthalpy?
A. Fluorine
B. Chlorine
C. Bromine
D. Iodine
Answer:
B. Chlorine

Question ii.
Hydrides of group 16 are weakly acidic. The correct order of acidity is
A. H₂O > H₂S > H₂Se > H₂Te
B. H₂Te > H₂O > H₂S > H₂Se
C. H₂Te > H₂Se > H₂S > H₂O
D. H₂Te > H₂Se > H₂O > H₂S
Answer:
C. H₂Te > H₂Se > H₂S > H₂O

Question iii.
Which of the following element does not show oxidation state of +4 ?
A. O
B. S
C. Se
D. Te
Answer:
A. O

Question iv.
HI acid when heated with conc. H₂SO₄ forms
A. HIO₃
B. KIO₃
C. I₂
D. KI
Answer:
C. I₂

Question v.
Ozone layer is depleted by
A. NO
B. NO₂
C. NO₃
D. N₂O₅
Answer:
A. NO

Question vi.
Which of the following occurs in liquid state at room temperature?
A. HIO₃
B. HBr
C. HCl
D. HF
Answer:
D. HF

Question vii.
In pyrosulfurous acid oxidation state of sulfur is
A. Only +2
B. Only +4
C. +2 and +6
D. Only +6
Answer:
B. Only + 4

Question viii.
Stability of interhalogen compounds follows the order
A. BrF > IBr > ICl > ClF > BrCl
B. IBr > BeF > ICl > ClF > BrCl
C. ClF > ICl > IBr > BrCl > BrF
D. ICl > ClF > BrCl > IBr > BrF
Answer:
C. ClF > ICl > IBr > BrCl > BrF

Question ix.
BrCl reacts with water to form
A. HBr
B. Br₂ + Cl₂
C. HOBr
D. HOBr + HCl
Answer:
D. HOBr + HCl

Question x.
Chlorine reacts with excess of fluorine to form.
A. ClF
B. ClF₃
C. ClF₂
D. Cl₂F₃
Answer:
B. ClF₃

Question xi.
In interhalogen compounds, which of the following halogens is never the central atom.
A. I
B. Cl
C. Br
D. F
Answer:
D. F

Question xii.
Which of the following has one lone pair of electrons?
A. IF₃
B. ICl
C. IF₅
D. ClF₃
Answer:
C. IF₅

Question xiii.
In which of the following pairs, molecules are paired with their correct shapes?
A. [I₃] : bent
B. BrF₅ : trigonal bipyramid
C. ClF₃ : trigonal planar
D. [BrF₄] : square planar
Answer:
A. [I₃] : bent

Question xiv.
Among the known interhalogen compounds, the maximum number of atoms is
A. 3
B. 6
C. 7
D. 8
Answer:
D. 8

2. Answer the following.

Question i.
Write the order of the thermal stability of the hydrides of group 16 elements.
Answer:
The thermal stability of the hydrides of group 16 elements decreases in the order of H₂O > H₂S > H₂Se > H₂Te.

Question ii.
What is the oxidation state of Te in TeO₂?
Answer:
The oxidation state of Te in TeO₂ is + 4.

Question iii.
Name two gases which deplete ozone layer.
Answer:
Nitrogen oxide (NO) released from exhaust systems of car or supersonic jet aeroplanes and chlorofluorocarbons (Freons) used in aerosol sprays and refrigerators deplete ozone layer.

Question iv.
Give two uses of ClO₂
Answer:
(i) ClO₂ is used as a bleaching agent for paper pulp and textiles.
(ii) It is also used in water treatment.

Question v.
What is the action of bromine on magnesium metal?
Answer:
Bromine reacts instantly with magnesium metal to give magnesium bromide.

Question vi.
Write the names of allotropic forms of selenium.
Answer:
Selenium has two allotropic forms as follows :
(i) Red (non-metallic) form
(ii) Grey (metallic) form

Question vii.
What is the oxidation state of S in H₂SO₄.
Answer:
The oxidation state of S in H₂SO₄ is + 6.

Question viii.
The pKa values of HCl is -7.0 and that of HI is -10.0. Which is the stronger acid?
Answer:
For HCl, pK_a = -7.0, hence its dissoClation constant is, K_a = 1 x 10^-7.
For HI pK_a = – 10.0, hence its dissoClation constant is K_a = 1 x 10^-7. Hence HCl dissoClates more than HI.
Therefore HCl is a stronger acid than HI.

Question ix.
Give one example showing reducing property of ozone.
Answer:
Ozone decomposes to liberate nascent oxygen, hence it is a powerful oxidising agent. O_3(g) → O_2(g) + O

For example :
(i) It oxidises lead sulphide (PbS) to lead sulphate (PbSO₄).
pbS_(s) + 4O_3(g) → PbSO_(s) + 4O_2(g)
(ii) Potassium iodide, KI is oxidised to iodine, I₂ in the solution.
2KI_(aq) + H₂O₍₁₎ + O_3(g) → 2KOH_(aq) + I_2(s) + O_2(g)

Question x.
Write the reaction of conc. H₂SO₄ with sugar.
Answer:
Concentrated sulphuric acid when added to sugar, it is dehydrated giving carbon.

The carbon that is left behind is called sugar charcoal and the process is called char.

Question xi.
Give two uses of chlorine.
Answer:
Chlorine is used for :

• for sterilization of drinking water.
• bleaching wood pulp required for the manufacture of paper and rayon, cotton and textiles are also bleached using chlorine.
• in the manufacture of organic compounds like CHCl₃, CCl₄, DDT, dyes and drugs.
• in the extraction of metals like gold and platinum.
• in the manufacture of refrigerant like Freon (i.e., CCl₂F₂).
• in the manufacture of several poisonous gases like mustard gas (Cl-C₂H₄-S-C₂H₄-Cl), phosgene (COCl₂) used in warfare.
• in the manufacture of tear gas (CCl₃NO₂).

Question xii.
Complete the following.
1. ICl₃ + H₂O …….. + …….. + ICl
2. I₂ + KClO₃ ……. + KIO₂
3. BrCl + H₂O ……. + HCl
4. Cl₂ + ClF₃ ……..
5. H₂C = CH₂ + ICl …….
6. XeF₄ + SiO₂ ……. + SiF₄
7. XeF₆ + 6H₂O …….. + HF
8. XeOF₄ + H₂O ……. + HF
Answer:
1. 2ICI₃ + 3H₂O → 5HCl + HlO₃ + ICl
2. I₂ + KCIO₃ → ICl + KIO₃
3. BrCl + H₂O → HOBr + HCl
4. Cl₂ + C1F₃ → 3ClF
5. CH₂ = CH₂ + ICl → CH₂I – CH₂Cl
6. 2XeF₆ + SiO₂ → 2XeOF₄ + SiF₄
7. XeF₆ + 3H₂O → XeO₃ + 6HF
8. XeOF₄ + H₂O→  XeO₂F₂ + 2HF

Question xiii.
Match the following
A – B
XeOF₂ – Xenon trioxydifluoride
XeO₂F₂ – Xenon monooxydifluoride
XeO₃F₂ – Xenon dioxytetrafluoride
XeO₂F₄ – Xenon dioxydifluoride
Answer:
XeOF₂ – Xenon monooxydifluoride
XeO₂F₂ – Xenon dioxydifluoride
XeO₃F₂ – Xenon trioxydifluoride
XeO₂F₄ – Xenon dioxytetrafluoride

Question xiv.
What is the oxidation state of xenon in the following compounds?
XeOF₄, XeO₃, XeF₅, XeF₄, XeF₂.
Answer:

3. Answer the following.

Question i.
The first ionisation enthalpies of S, Cl and Ar are 1000, 1256 and 1520 kJ/mol^-1, respectively. Explain the observed trend.
Answer:
(i) The atomic number increases as, ₁₆S < ₁₇Cl < ₁₈Ar₁.
(ii) Due to decrease in atomic size and increase in effective nuclear charge, Cl binds valence electrons strongly.
(iii) Hence ionisation enthalpy of Cl (1256 kJ mol^-1) is higher than that of S(1000 kJ mol^-1)
(iv) Ar has electronic configuration 3s²3p⁶. Since all electrons are paired and the octet is complete, it has the highest ionisation enthalpy, (1520 kJ mol^-1)

Question ii.
“Acidic character of hydrides of group 16 elements increases from H₂O to H₂Te” Explain.
Answer:
(i) The thermal stability of the hydrides of group 16 elements decreases from H₂O to H₂Te. This is because the bond dissociation enthalpy of the H-E bond decreases down the group.
(ii) Thus, the acidic character increases from H₂O to H₂Te.

Question iii.
How is dioxygen prepared in laboratory from KClO₃?
Answer:
By heating chlorates, nitrates and permanganates.
Potassium chlorate in the presence of manganese dioxide on heating decomposes to form potassium chloride and oxygen.

Question iv.
What happens when
a. Lead sulfide reacts with ozone (O₃).
b. Nitric oxide reacts with ozone.
Answer:
(i) It oxidises lead sulphide (PbS) to lead sulphate (PbSO₄) changing the oxidation state of S from – 2 to +6.
PbS_(s) + 4O_3(g) → PbSO_(s) + 4O_2(g)

(ii) Ozone oxidises nitrogen oxide to nitrogen dioxide.
NO_(g) + O_3(g) → NO_2(g) + O_2(g)

Question v.
Give two chemical reactions to explain oxidizing property of concentrated H₂SO₄.
Answer:
Hot and concentrated H₂SO₄ acts as an oxidising agent, since it gives nascent oxygen on heating.

Question vi.
Discuss the structure of sulfur dioxide.
Answer:
(i) SO₂ molecule has a bent V shaped structure with S-O-S bond angle 119.5° and bond dissoClation enthalpy is 297 kJ mol^-1.
(ii) Sulphur in SO₂ is sp² hybridised forming three hybrid orbitals. Due to lone pair electrons, bond angle is reduced from 120° to 119.5°.
(iii) In SO₂, each oxygen atom is bonded to sulphur by σ and a π bond.
(iv) a bond between S and O are formed by sp²-p overlapping.
(v) One of π bonds is formed by pπ – pπ overlapping while other n bond is formed by pπ – dπ overlap.
(vi) Due to resonance both the bonds are identical having observed bond length 143 pm due to resonance,

Question vii.
Fluorine shows only -1 oxidation state while other halogens show -1, +1, +3, +5 and +7 oxidation states. Explain.
Answer:

• Halogens have outer electronic configuration ns² np⁵.
• Halogens have tendency to gain or share one electron to attain the stable configuration of nearest inert element with configuration ns²np⁶.
• Hence they are monovalent and show oxidation state – 1.
• Since fluorine does not have vacant d-orbital, it shows only one oxidation state of – 1 while all other halogens show variable oxidation states from – 1 to +7.
• These oxidation states are, – 1, +1, + 3, +5 and + 7. Cl and Br also show oxidation states + 4 and + 6 in their oxides and oxyaClds.

Question viii.
What is the action of chlorine on the following
a. Fe
b. Excess of NH₃
Answer:
(a) Chlorine reacts with Fe to give ferric chloride.
2Fe + 3Cl₂ → 2FeCl₃

(b) Chlorine reacts with the excess of ammonia to form ammonium chloride, NH₄Cl and nitrogen.

Question ix.
How is hydrogen chloride prepared from sodium chloride?
Answer:

1. In the laboratory, hydrogen chloride, HCl is prepared by heating a mixture of NaCl and concentrated H₂SO₄.

2. Hydrogen chloride gas, is dried by passing it through a dehydrating agent like concentrated H₂SO₄ and then collected by upward displacement of air.

Question x.

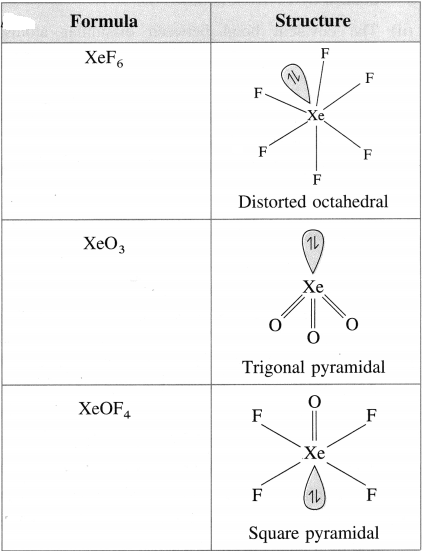

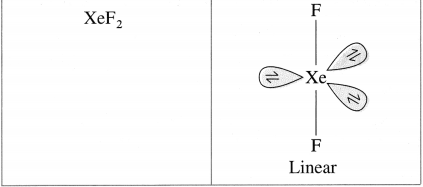

Draw structures of XeF₆, XeO₃, XeOF₄, XeF₂.
Answer:

Question xi.

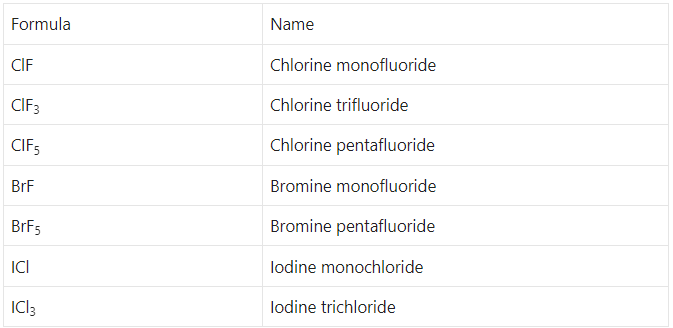

What are interhalogen compounds? Give two examples.
Answer:
Interhalogen compounds : Compounds formed by the combination of atoms of two different halogens are called interhalogen compounds. In an interhalogen compound, of the two halogen atoms, one atom is more electropositive than the other. The interhalogen compound is regarded as the halide of the more electropositive halogen.
For example ClF, BrF₃, ICl

Question xii.
What is the action of hydrochloric acid on the following?
a. NH₃
b. Na₂CO₃
Answer:
a. Hydrochloric acid reacts with ammonia to give white fumes of ammonium chloride.
NH₃ + HCl → NH₄Cl

b. Hydrochloric acid reacts with sodium carbonate to give sodium chloride, water with the liberation of carbon dioxide gas.
Na₂CO₃ + 2HCl → 2NaCl + H₂O + CO₂

Question xiii.
Give two uses of HCl.
Answer:
Hydrogen chloride (OR hydrochloric acid) is used :

• in the manufacture of chlorine and ammonium chloride,
• to manufacture glucose from com, starch
• to manufacture dye
• in mediClne and galvanising
• as an important reagent in the laboratory
• to extract glue from bones and for the purification of bone black.
• for dissolving metals, Fe + 2HCl_(aq) → FeCl₂ + H_2(g)

Question xiv.

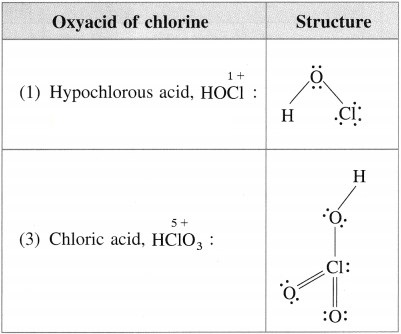

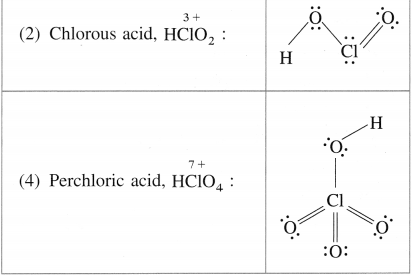

Write the names and structural formulae of oxoacids of chlorine.
Answer:

Question xv.
What happens when
a. Cl₂ reacts with F₂ in equal volume at 437 K.
b. Br₂ reacts with excess of F₂.
Answer:
(a) Cl₂ reacts with F₂ in equal volumes at 437 K to give chlorine monofluoride ClF.

(b) Br₂ reacts with excess of F₂ to give bromine trifluoride BF₃.

Question xvi.
How are xenon fluorides XeF₂, XeF₄ and XeF₆ obtained ? Give suitable reactions.
Answer:
Xenon fluorides are generally prepared by the direct reaction of xenon and fluorine in different ratios and under appropriate experimental conditions, such as temperature, in the presence of an electric discharge and by a photochemical reaction.
(i) Preparation of XeF₂ :

(ii) Preparation of XeF₄ :

(iii) Preparation of XeF₆ :

Question xvii.
How are XeO₃ and XeOF₄ prepared?
Answer:
Preparation of XeO₃ : Xenon trioxide (XeO₃) is prepared by the hydrolysis of XeF₄ or XeF₆.

Question xviii.
Give two uses of neon and argon.
Answer:
Uses of neon (Ne) :

• Neon is used in the production of neon discharge lamps and signs by filling Ne in glass discharge tubes.
• Neon signs are visible from a long distance and also have high penetrating power in mist or fog.
• A mixture of neon and helium is used in voltage stabilizers and current rectifiers.
• Neon is also used in the production of lasers and fluorescent tubes.

Uses of argon (Ar) :

• Argon is used to fill fluorescent tubes and radio valves.
• It is used to provide inert atmosphere for welding and production of steel.
• It is used along with neon in neon sign lamps to obtain different colours.
• A mixture of 85% Ar and 15% N2 is used in electric bulbs to enhance the life of the filament.

Question xix.
Describe the structure of Ozone. Give two uses of ozone.
Answer:
(A)

• Ozone has molecular formula O₃.
• The lewis dot and dash structures for O₃ are :

• Infrared and electron diffraction spectra show that O₃ molecule is angular with 0-0-0 bond angle 117°.
• Both 0-0 bonds are identical having bond length 128 pm which is intermediate between single and double bonds.
• This is explained by considering resonating structures and resonance hybrid.


(B) Uses of Ozone :

• Ozone sterilises drinking water by oxidising germs and bacteria present in it.
• It is used as a bleaching agent for ivory, oils, starch, wax and delicate fabrics like silk.
• Ozone is used to purify the air in crowded places like Clnema halls, railways, tunnels, etc.
• In industry, ozone is used in the manufacture of synthetic camphor, potassium permanganate, etc.

Question xx.
Explain the trend in following atomic properties of group 16 elements.
i. Atomic radii
ii. Ionisation enthalpy
iii. Electronegativity.
Answer:
(1) Atomic and ionic radii :

1. As compared to group 15 elements, the atomic and ionic radii of group 16 elements are smaller due to higher nuclear charge.
2. The atomic and ionic radii increase down the group from oxygen to polonium. This is due to the addition of a new shell at each successive elements on moving down the group. The atomic radii increases in the order O < S < Se < Te < Po

(2) Ionisation enthalpy :

• The ionisation enthalpy of group 16 elements has quite high values.
• Ionisation enthalpy decreases down the group from oxygen to polonium. This is due to the increase in atomic volume down the group.
• The first ionisation enthalpy of the lighter elements of group 16 (O, S, Se) have lower values than those of group 15 elements in the corresponding periods. This is due to difference in their electronic configurations.

Group 15 : (valence shell) ns² np_x¹ np_y¹ np_z¹
Group 16 : (valence shell) ns² np_x² np_y¹ np_z¹

Group 15 elements have extra stability of half-filled and more symmetrical orbitals, while group 16 elements acquire extra stability by losing one of paired electrons from npx- orbital forming half-filled p-orbitals.

Hence group 16 elements have lower first ionisation enthalpy than group 15 elements.

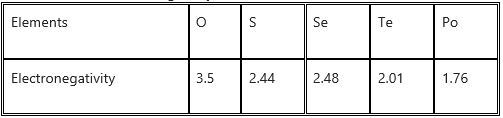

(3) Electronegativity :

• The electronegativity values of group 16 elements have higher values than corresponding group 15 elements in the same periods.
• Oxygen is the second most electronegative elements after fluorine. (O = 3.5, F = 4)
• On moving down the group electronegativity decreases from oxygen to polonium.
• On moving down the group atomic size increases, hence nuclear attraction decreases, therefore electro-negativity decreases.

4. Answer the following.

Question i.
Distinguish between rhombic sulfur and monoclinic sulfur.
Answer:

Question ii.
Give two reactions showing oxidizing property of concentrated H₂SO₄.
Answer:
Hot and concentrated H₂SO₄ acts as an oxidising agent, since it gives nascent oxygen on heating.

Question iii.
How is SO₂ prepared in the laboratory from sodium sulfite? Give two physical properties of SO₂.
Answer:
(A) Laboratory method (From sulphite) :

• Sodium sulphite on treating with dilute H₂SO₄ forms SO₂.
  Na₂SO₃ + H₂SO_4(aq) → Na₂SO₄ + H₂O₍₁₎ + SO_2(g)
• Sodium sulphite, Na₂SO₃ on reaction with dilute hydrochloric acid solution forms SO₂.
  Na₂SO_3(aq) + 2HCl_(aq) → 2NaCl_9aq0 + H₂O₍₁₎ + SO_2(g)

(B) Physical properties of SO₂

• It is a colourless gas with a pungent smell.
• It is highly soluble in water and forms sulphurous acid, H₂SO₃ SO_2(g) + H₂O₍₁₎ → H₂SO_3(aq)
• It is poisonous in nature.
• At room temperature, it liquefies at 2 atmospheres. It has boiling point 263K.

Question iv.
Describe the manufacturing of H₂SO₄ by contact process.
Answer:
Contact process of the manufacture of sulphuric acid involves following steps :

(1) Preparation of SO₂ : Sulphur or pyrite ores like iron pyrites, FeS₂ on burning in excess of air, form SO₂.

(2) Oxidation of SO₂ to SO₃ : SO₂ is oxidised to SO₃ in the presence of a heterogeneous catalyst V₂O₅ and atmospheric oxygen. This oxidation reaction is reversible.

To avoid the poisoning of a costly catalyst, it is necessary to make SO₂ free from the impurities like dust, moisture, As₂O₃ poison, etc.

The forward reaction is exothermic and favoured by increase in pressure. The reaction is carried out at high pressure (2 bar) and 720 K temperature. The reacting gases, SO₂ and O₂ are taken in the ratio 2:3.

(3) Dissolution of SO₃ : SO₃ obtained from catalytic converter is absorbed in 98%. H₂SO₄ to obtain H₂S₂O₇, oleum or fuming sulphuric acid.

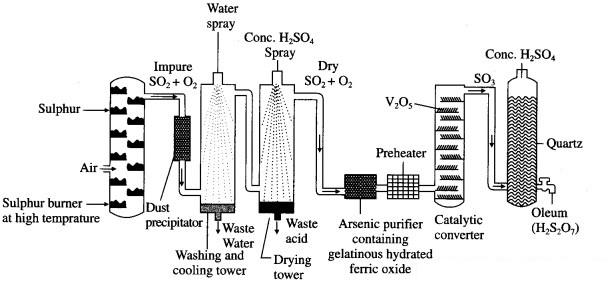

Flow diagram for the manufacture of sulphuric acid

Question 7.1 (Textbook Page No 141)

Intext Questions and Answers

Question 1.
Elements of group 16 generally show lower values of first ionisation enthalpy compared to the elements of corresponding period of group 15. Why?
Answer:
Group 15 elements have extra stable, half filled p-orbitals with electronic configuration (ns²np³). Therefore more amount of energy is required to remove an electron compared to that of the partially filled orbitals (ns²np⁴) of group 16 elements of the corresponding period.

Question 7.2 (Textbook Page No 141)

Question 1.
The values of first ionisation enthalpy of S and Cl are 1000 and 1256 kJ mol^-1, respectively. Explain the observed trend.
Answer :
The elements S and Cl belong to second period of the periodic table.
Across a period effective nuclear charge increases and atomic size decreases with increase in atomic number. Therefore the energy required for the removal of electron from the valence shell (I.E.) increases in the order S < Cl.

Question 7.4 (Textbook Page No 141)

Question 1.
Fluorine has less negative electron gain affinity than chlorine. Why?
Answer :
The size of fluorine atom is smaller than chlorine atom. As a result, there are strong inter electronic repulsions in the relatively small 2p orbitals of fluorine and therefore, the incoming electron does not experience much attraction. Thus fluorine has less negative electron gain affinity than chlorine.

Try this… (Textbook Page No 140)

Question 1.
Explain the trend in the following properties of group 17 elements.

(1) Atomic size,
(2) Ionisation enthalpy,
(3) Electronegativity,
(4) Electron gain enthalpy.
Answer:
(1) Atomic size :

• Atomic and ionic radii increase down the group as atomic number increases due to the addition of new electronic valence shell to each succeeding element.
• The atomic radii increase in the order F < Cl < Br < 1
• Halogens possess the smallest atomic and ionic radii in their respective periods since the effective nuclear charge experienced by valence electrons in halogen atoms is the highest.

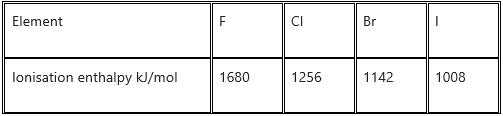

(2) Ionisation enthalpy :

• The ionisation enthalpies of halogens are very high due to their small size and large nuclear attraction.
• The ionisation ethalpies decrease down the group since the atomic size increases.
• The ionisation enthalpy decreases in the order F > Cl > Br > I.
• Among halogens fluorine has the highest ionisation enthalpy due to its smallest size.

(3) Electronegativity :

• Halogens have the highest values for electronegativity due to their small atomic radii and high effective nuclear charge.
• Each halogen is the most electronegative element of its period.
• Fluorine has the highest electronegativity as compared to any element in the periodic table.
• The electronegativity decreases as,
  F > Cl > Br > I
  4.0 3.2 3.0 2.7 (electronegativity)

(4) Electron gain enthalpy (Δ_egH) :

• The halogens have the highest negative values for electron gain enthalpy.
• Electron gain enthalpies of halogens are negative indicating release of energy.
• Halogens liberate maximum heat by gain of electron as compared to other elements.
• Since halogens have outer valence electronic configuration, ns² np⁵, they have strong tendency to accept an electron to complete an octet and acquire electronic configuration of the nearest inert elements.
• In case of fluorine due to small size of 2 p-orbitals and high electron density, F has less negative electron gain enthalpy than Cl.
  F_(g) + e^– → F^–_(g) Δ_egH = – 333 klmol^-1
  Cl_(g) + e^– → Cl^–_(g) Δ_egH = – 349 kJ mol^-1
• The variation in electron gain enthalpy is in the order of, Cl > F > Br > I.

Question 2.
Oxygen has less negative electron gain enthalpy than sulphur. Why?
Answer:

• Oxygen has a smaller atomic size than sulphur.
• It is more electronegative than sulphur.
• It has a larger electron density.
• Due to high electron density, oxygen does not accept the incoming electron easily and therefore has less electron gain enthalpy than sulphur.

Question 7.3 (Textbook Page No 141)

Question 1.
Why is there a large difference between the melting and boiling points of oxygen and sulphur?
Answer :
Oxygen exists as diatomic molecule (O₂) whereas sulphur exists as polyatomic molecule (S₈). The van der Waals forces of attraction between O₂ molecules are relatively weak owing to their much smaller size. The large van der Waals attractive forces in the S₈ molecules are due to large molecular size. Therefore oxygen has low m.p. and b.p. as compared to sulphur.

Question 7.5 (Textbook Page No 141)

Question 1.
Bond dissoClation enthalpy of F₂ (158.8 kj mol^-1) is lower than that of Cl₂ (242.6 kj mol^-1) Why?
Answer :

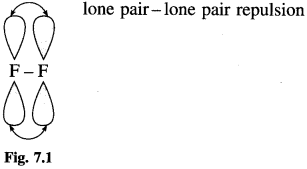

Fluorine has small atomic size than chlorine. The lone pairs on each F atom in F₂ molecule are so close together that they strongly repel each other, and make the F – F bond weak. Thus, it requires less amount of energy to break the F – F bond. In Cl₂ molecule the lone pairs on each Cl atom are at a larger distance and the repulsion is less.

Thus Cl – Cl bond is comparatively stronger. Therefore bond dissoClation enthalpy of F₂ is lower than that of Cl₂.

Question 7.6 (Textbook Page No 142)

Question 1.
Noble gases have very low melting and boiling points. Why?
Answer :
Noble gases are monoatomic, the only type of interatomic interactions which exist between them are weak van der Waals forces. Therefore, they can be liquefied at very low temperatures and have very low melting or boiling points.

Can you tell? (Textbook Page No 142)

Question 1.
The first member of the a group usually differs in properties from the rest of the members of the group. Why?
Answer:
The first member of a group usually differs in properties from the rest of the members of the group for the following reasons :

• Its small size
• High electronegativity
• Absence of vacant d-orbitals in its valence shell.

Use your brain power! (Textbook Page No 142)

Question 1.
Oxygen forms only OF₂ with fluorine while sulphur forms SF₆. Explain. Why?
Answer:

• Oxygen combines with the most electronegative element fluorine to form OF₂ and exhibits positive oxidation state (+ 2). Since, oxygen does not have vacant J-orbitals it cannot exhibit higher oxidation states.
• Sulphur has vacant d-orbitals and hence can exhibit + 6 oxidation state to form SF₆.

Question 2.
Which of the following possesses hydrogen bonding? H₂S, H₂O, H₂Se, H₂Te
Answer:

• Oxygen being more electronegative, is capable of forming hydrogen bonding in the compound H₂O.
• The other elements S, Se and Te of Group 16, being less electronegative do not form hydrogen bonds.
• Thus, hydrogen bonding is not present in the other hydrides H₂S, H₂Se and H₂Te.

Question 3.
Show hydrogen bonding in the above molecule with the help of a diagram.
Answer:

Try this….. (Textbook Page No 143)

Question 1.

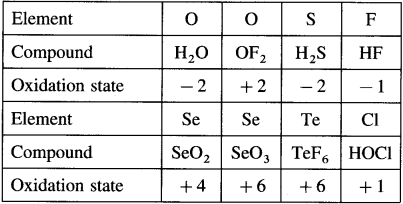

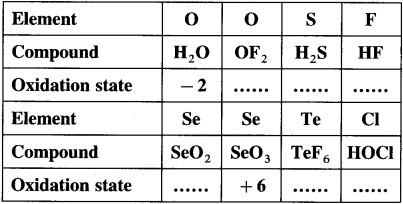

Complete the following tables :

Answer:

Can you tell? (Textbook Page No 146)

Question 1.
What is allotropy?
Answer:
The property of some elements to exist in two or more different forms in the same physical state is called allotropy.

Question 2.
What is the difference between allotropy and polymorphism?
Answer:

• Allotropy is the existence of an element in more than one physical form. It means that under different conditions of temperature and pressure an element can exist in more than one physical forms.
• Coal, graphite and diamond etc., are different allotropic forms of carbon.
• Polymorphism is the existence of a substance in more than one crystalline form.
• It means that under different conditions of temperature and pressure, a substance can form more than one type of crystal. For example, mercuric iodide exists in the orthorhombic and trigonal form.

Question 7.7 (Textbook Page No 146)

Which form of sulphur shows paramagnetic behaviour?
Answer :
In the vapour state, sulphur partly exists as S₂ molecule, which has two unpaired electrons in the antibonding π^* orbitals like O₂. Hence it exhibits paramagnetism.

Try this….. (Textbook Page No 149)

Question 1.
Why water in a fish pot needs to be changed from time to time?
Answer:
A fish pot is an artificial ecosystem and the fish in it are selective and maintained in a restricted environment.

In a fish pot, the unwanted food and waste generated by the fish mix with the water and remain untreated due to lack of decomposers.

Accumulation of waste material will decrease the levels of dissolved oxygen in the water pot.

Hence, it is necessary to change the water from time to time.

Question 7.8 (Textbook Page No 149)

Dioxygen is paramagnetic in spite of having an even number of electrons. Explain.
Answer :
Dioxygen is a covalently bonded molecule.
The paramagnetic behaviour of O₂ can be explained with the help of molecular orbital theory.
Electronic configuration O₂
KK σ(2s)² σ(2s)² σ^*(2p_z)² π(2p_x)² π(2p_x)² π(2p_y)² π^*(2p_x)¹ π^*(2p_y)¹. Presence of two unpaired electrons in antibonding orbitals explains paramagnetic nature of dioxygen.

Question 7.9 (Textbook Page No 150)

High concentration of ozone can be dangerously explosive. Explain.
Answer :
Thermal stability : Ozone is thermodynamically unstable than oxygen and decomposes into O₂. The decomposition is exothermic and results in the liberation of heat (ΔH is – ve) and an increase in entropy (ΔS is positive). This results in large negative Gibbs energy change (ΔG). Therefore high concentration of ozone can be dangerously explosive. Eq O₃ → O₂ + O

Try this…… (Textbook Page No 151)

(a) Ozone is used as a bleaching agent. Explain.
Answer:

• Ozone due to its oxidising property can act as a bleaching agent. O_3(g) → O_2(g) + O
• It bleaches coloured matter. coloured matter + O → colourless matter
• Ozone bleaches in the absence of moisture, so it is also known as dry bleach.
• Ozone can bleach ivory and delicate fabrics like silk.

(b) Why does ozone act as a powerful oxidising agent?
Answer:
Ozone decomposes to liberate nascent oxygen, hence it is a powerful oxidising agent. O_3(g) → O_2(g) + O
For example :

• It oxidises lead sulphide (PbS) to lead sulphate (PbSO₄).
  pbS_(s) + 4O_3(g) → PbSO_(s) + 4O_2(g)
• Potassium iodide, KI is oxidised to iodine, I₂ in the solution.
  2KI_(aq) + H₂O₍₁₎ + O_3(g) → 2KOH_(aq) + I_2(s) + O_2(g)

Question 7.10 : (Textbook Page No 154)

What is the action of concentrated H₂SO₄ on (a) HBr (b) HI
Answer :
Concentrated sulphuric acid oxidises hydrobromic acid to bromine.

2HBr + H₂SO₄ → Br₂ + SO₂ + 2H₂O
It oxidises hydroiodic acid to iodine.
2HI + H₂SO₄ → I₂ + SO₂ + 2H₂O

Try this….. (Textbook Page No 156)

Question 1.
Give the reasons for the bleaching action of chlorine.
Answer:

• Chlorine acts as a powerful bleaching agent due to its oxidising nature.
• In moist conditions or in the presence of water it forms unstable hypochlorous acid, HOCl which decomposes giving nascent oxygen which oxidises the vegetable colouring matter of green leaves, flowers, litmus, indigo, etc.
  Cl₂ + H₂O → HCl + HOCl
  HOCl → HCl + [O]
  Vegetable coloured matter + [O] → colourless matter.

Question 2.
Name two gases used in war.
Answer:
Phosgene : COCl₂
Mustard gas: Cl – CH₂ – CH₂ – S – CH₂ – CH₂ – Cl

Use your brain power! (Textbook Page No 157)

Question 1.
Chlorine and fluorine combine to form interhalogen compounds. The halide ion will be of chlorine or fluorine?
Answer:
Among the- two halogens, chlorine is more electropositive than fluorine (Electronegativity values: F = 4.0, Cl = 3.2)

The interhalogen compound is regarded as the halide of the more electropositive halogen. Hence, the interhalogen compound is the fluoride of chlorine, i.e. chlorine monofluoride, CiF.

Question 2.
Why does fluorine combine with other halogens to form maximum number of fluorides?
Answer:
Since fluorine is the most electronegative element and has the smallest atomic radius compared to other halogen fluorine forms maximum number of fluorides.

Use your brain power! (Textbook Page No 158)

Question 1.
What will be the names of the following compounds: ICl, BrF?
Answer:
ICl : Iodine monochloride
BrF : Bromine monofluoride

Question 2.
Which halogen (X) will have maximum number of other halogen (X ) attached?
Answer:
The halogen Iodine (I) will have the maximum number of other halogens attached.

Question 3.
Which halogen has tendency to form more interhalogen compounds?
Answer:
The halogen fluorine (F) has the maximum tendency to form more interhalogen compounds as it has a small size and more electronegativity.

Question 4.
Which will be more reactive?
(a) ClF₃ or ClF,
(b) BrF₅ or BrF
Answer:
ClF₃ is more reactive than ClF, while BrF₅ is more reactive than BrF. Both ClF₃ and BrF₅ are unstable compared to ClF and BrF respectively due to steric hindrance hence are more reactive.

Question 5.
Complete the table :

Answer:

Use your brain power! (Textbook Page No 159)

Question 1.
In the special reaction for ICl, identify the oxidant and the reductant? Denote oxidation states of the species.
Answer:

Potassium chlorate, KClO₃ is the oxidising agent or oxidant and iodine is the reducing agent or reductant.

Use your brain power! (Textbook Page No 162)

Question 1.
What are missing entries?
