**Chapter 7 Linear Programming Miscellaneous Exercise 7**

## Chapter 7 Linear Programming Miscellaneous Exercise 7

**I) Select the appropriate alternatives for each of the following :Question 1.The value of objective function is maximum under linear constraints _______.**

(A) at the centre of feasible region

(B) at (0, 0)

(C) at a vertex of feasible region

(D) the vertex which is of maximum distance from (0, 0)

**Solution:**

(C) at a vertex of feasible region

**Question 2.Which of the following is correct _______.**

(A) every L.P.P. has an optimal solution

(B) a L.P.P. has unique optimal solution

(C) if L.P.P. has two optimal solutions then it has infinite number of optimal solutions

(D) the set of all feasible solution of L.P.P. may not be convex set

**Solution:**

(C) if L.P.P. has two optimal solutions then it has infinite number of optimal solutions

**Question 3.Objective function of L.P.P. is _______.**
(A) a constraint

(B) a function to be maximized or minimized

(C) a relation between the decision variables

(D) equation of a straight line

**Solution:**

(B) a function to be maximized or minimized

**Question 4.The maximum value of z = 5x + 3y subjected to the constraints 3x + 5y ≤ 15, 5x + 2y ≤ 10, x, y≥ 0 is _______.**

**Question 5.The maximum value of z = 10x + 6y subjected to the constraints 3x + y ≤ 12, 2x + 5y ≤ 34, x ≥ 0, y≥ 0. _______.**

(A) 56

(B) 65

(C) 55

(D) 66

**Solution:**

(A) 56

**Question 6.The point at which the maximum value of x + y subject to the constraints x + 2y ≤ 70, 2x + y ≤ 95, x ≥ 0, y ≥ 0 is obtained at _______.**
(A) (30, 25)

(B) (20, 35)

(C) (35, 20)

(D) (40, 15)

**Solution:**

(D) (40, 15)

**Question 7.Of all the points of the feasible region, the optimal value ofz obtained at the point lies _______.**

(A) inside the feasible region

(B) at the boundary of the feasible region

(C) at vertex of feasible region

(D) outside the feasible region

**Solution:**

(C) at vertex of feasible region

**Question 8.Feasible region is the set of points which satisfy _______.**
(A) the objective function

(B) all of the given constraints

(C) some of the given constraints

(D) only one constraint

**Solution:**

(B) all of the given constraints

**Question 9.Solution of L.P.P. to minimize z = 2x + 3y such that x ≥ 0, y ≥ 0, 1 ≤ x + 2y ≤ 10 is _______.**

**Question 10.The corner points of the feasible solution given by the inequation x + y ≤ 4, 2x + y ≤ 7, x ≥ 0, y ≥ 0 are _______.**

**Question 11.The corner points of the feasible solution are (0, 0), (2, 0), (127, 37), (0, 1). Then z = 7x + y is maximum at _______.**

**Question 12.If the corner points of the feasible solution are (0, 0), (3, 0), (2, 1) and (0, 7/3 ), the maximum value of z = 4x + 5y is _______.**

(A) 12

(B) 13

(C) 35

(D) 0

**Solution:**

(B) 13

**Question 13.If the corner points of the feasible solution are (0, 10), (2, 2) and (4, 0) then the point of minimum z = 3x + 2y is _______.**

(A) (2, 2)

(B) (0, 10)

(C) (4, 0)

(D) (3 ,4)

**Solution:**

(A) (2, 2)

**Question 14.The half plane represented by 3x + 2y < 8 contains the point _______.**
(A) (1, 5/2)

(B) (2, 1)

(C) (0, 0)

(D) (5, 1)

**Solution:**

(C) (0, 0)

**Question 15.The half plane represented by 4x + 3y > 14 contains the point _______.**

(A) (0, 0)

(B) (2, 2)

(C) (3, 4)

(D) (1, 1)

**Solution:**

(C) (3, 4)

**II) Solve the following :Question 1.Solve each of the following inequations graphically using X Y plane.(i) 4x – 18 ≥ 0Solution:**
Consider the line whose equation is 4x – 18 ≥ 0 i.e. x = 18/4=9/2 = 4.5

This represents a line parallel to Y-axis passing3through the point (4.5, 0)

Draw the line x = 4.5

To find the solution set we have to check the position of the origin (0, 0).

When x = 0, 4x – 18 = 4 × 0 – 18 = -18 > 0

∴ the coordinates of the origin does not satisfy thegiven inequality.

∴ the solution set consists of the line x = 4.5 and the non-origin side of the line which is shaded in the graph.

**(ii) -11x – 55 ≤ 0Solution:**
Consider the line whose equation is -11x – 55 ≤ 0 i.e. x = -5

This represents a line parallel to Y-axis passing3through the point (-5, 0)

Draw the line x = – 5

To find the solution set we have to check the position of the origin (0, 0).

When x = 0, -11x – 55 = – 11(0) – 55 = -55 > 0

∴ the coordinates of the origin does not satisfy thegiven inequality.

∴ the solution set consists of the line x = -5 and the non-origin side of the line which is shaded in the graph.

**(iii) 5y – 12 ≥ 0Solution:**
Consider the line whose equation is 5y – 12 ≥ 0 i.e. y = 12/5

This represents a line parallel to X-axis passing through the point (o, 12/5)

Draw the line y = 12/5

To find the solution set, we have to check the position of the origin (0, 0).

When y = 0, 5y – 12 = 5(0) – 12 = -12 > 0

∴ the coordinates of the origin does not satisfy the given inequality.

∴ the solution set consists of the line y = 12/5 and the non-origin side of the line which is shaded in the graph.

**(iv) y ≤ -3.5Solution:**
Consider the line whose equation is y ≤ – 3.5 i.e. y = – 3.5

This represents a line parallel to X-axis passing3through the point (0, -3.5)

Draw the line y = – 3.5

To find the solution set, we have to check the position of the origin (0, 0).

∴ the coordinates of the origin does not satisfy the given inequality.

∴ the solution set consists of the line y = – 3.5 and the non-origin side of the line which is shaded in the graph.

**Question 2.Sketch the graph of each of following inequations in XOY co-ordinate system.(i) x ≥ 5y**

**Solution:**

**(ii) x + y≤ 0Solution:**

**(iii) 2y – 5x ≥ 0Solution:**

**(iv) |x + 5| ≤ ySolution:**
|x + 5| ≤ y

∴ -y ≤ x + 5 ≤ y

∴ -y ≤ x + 5 and x + 5 ≤ y

∴ x + y ≥ -5 and x – y ≤ -5

First we draw the lines AB and AC whose equations are

x + y= -5 and x – y = -5 respectively.

The graph of |x + 5| ≤ y is as below:

**Question 3.Find graphical solution for each of the following system of linear inequation.(i) 2x + y ≥ 2, x – y ≤ 1Solution:**

First we draw the lines AB and AC whose equations are 2x + y = 2 and x – y = 1 respectively.

The solution set of the given system of inequalities is shaded in the graph.

**(ii) x + 2y ≥ 4, 2x – y ≤ 6Solution:**

**(iii) 3x + 4y ≤ 12, x – 2y ≥ 2, y ≥ -1Solution:**

First we draw the lines AB, CD and ED whose equations are 3x + 4y = 12, x – 2y = 2 and y = -1 respectively.

The solution set of given system of inequation is shaded in the graph.

**Question 4.Find feasible solution for each of the following system of linear inequations graphically.(i) 2x + 3y ≤ 12, 2x + y ≤ 8, x ≥ 0, y ≥ 0Solution:**

The feasible solution is OCPBO.

**(ii) 3x + 4y ≥ 12, 4x + 7y ≤ 28, x ≥ 0, y ≥ 0Solution:**

The feasible solution is ACDBA.

**Question 5.Solve each of the following L.P.P.(i) Maximize z = 5x**

_{1}+ 6x

_{2}subject to 2x

_{1}+ 3x

_{2}≤ 18, 2x

_{1}+ x

_{2}≤ 12, x

_{1}≥ 0, x

_{2}≥ 0Solution:

First we draw the lines AB and CD whose equations are 2x

_{1}+ 3x

_{2}= 18 and 2x

_{1}+ x

_{2}= 12 respectively.

The feasible region is OCPBO which is shaded in the graph. The vertices of the feasible region are O(0, 0), C(6, 0), P and B (0,6).

P is the point of intersection of the lines

2x

_{1}+ 3x

_{2}= 18 ….(1)

and 2x

_{1}+ x

_{2}= 12

On subtracting, we get

2x

_{2}= 6 ∴ x

_{2}= 3

Substituting x

_{2}= 3 in (2), we get

2x

_{1}+ 3 = 12 ∴ x

_{2}= 9

The values of objective function z = 5x

_{1}+ 6x

_{2}at these vertices are

z(O) = 5(0) + 6(0) = 0 + 0 = 0

z(C) = 5(6) + 6(0) = 30 + 0 = 30

z(B) = 5(0) + 6(3) = 0 + 18 = 18

Maximum value of z is 40.5 when x

_{1}= 9/2, y = 3.

**(ii) Maximize z = 4x + 2y subject to 3x + y ≥ 27, x + y ≥ 21Question is modified.Maximize z = 4x + 2y subject to 3x + y ≤ 27, x + y ≤ 21, x ≥ 0, y ≥ 0Solution:**
First we draw the lines AB and CD whose equations are 3x + y = 27 and x + y = 21 respectively.

The feasible region is OAPDO which is shaded region in the graph. The vertices of the feasible region are 0(0, 0), A (9, 0), P and D(0, 21). P is the point of intersection of lines

3x + y = 27 … (1)

and x + y = 21 … (2)

On substracting, we get 2x = 6 ∴ x = 3

Substituting x = 3 in equation (1), we get

9 + y = 27 ∴ y = 18

∴ P = (3, 18)

The values of the objective function z = 4x + 2y at these vertices are

z(O) = 4(0) + 2(0) = 0 + 0 = 0

z(a) = 4(9) + 2(0) = 36 + 0 = 36

z(P) = 4(3) + 2(18) = 12 + 36 = 48

z (D) = 4(0) + 2(21) = 0 + 42 = 42

∴ 2 has minimum value 48 when x = 3, y = 18.

**(iii) Maximize z = 6x + 10y subject to 3x + 5y ≤ 10, 5x + 3y ≤ 15, x ≥ 0, y ≥ 0Solution:**

First we draw the lines AB and CD whose equations are 3x + 5y = 10 and 5x + 3y = 15 respectively.

The feasible region is OCPBD which is shaded in the graph.

The vertices of the feasible region are 0(0, 0), C(3, 0), P and B (0, 2).

P is the point of intersection of the lines

3x + 5y = 10 … (1)

and 5x + 3y = 15 … (2)

Multiplying equation (1) by 5 and equation (2) by 3, we get

15x + 25y = 50

15x + 9y = 45

On subtracting, we get

**(iv) Maximize z = 2x + 3y subject to x – y ≥ 3, x ≥ 0, y ≥ 0Solution:**

First we draw the lines AB whose equation is x – y = 3.

The feasible region is shaded which is unbounded.

Therefore, the value of objective function can be in- j creased indefinitely. Hence, this LPP has unbounded solution.

**Question 6.Solve each of the following L.P.P.(i) Maximize z = 4x**

_{1}+ 3x

_{2}subject to 3x

_{1}+ x

_{2}≤ 15, 3x

_{1}+ 4x

_{2}≤ 24, x

_{1}≥ 0, x

_{2}≥ 0Solution:

We first draw the lines AB and CD whose equations are 3x

_{1}+ x

_{2}= 15 and 3x

_{1}+ 4x

_{2}= 24 respectively.

The feasible region is OAPDO which is shaded in the graph.

The Vertices of the feasible region are 0(0, 0), A(5, 0), P and D(0, 6).

P is the point of intersection of lines.

3x

_{1}+ 4x

_{2}= 24 … (1)

and 3x

_{1}+ x

_{2}= 15 … (2)

On subtracting, we get

3x

_{2}= 9 ∴ x

_{2}= 3

Substituting x

_{2}= 3 in (2), we get

3x

_{1}+ 3 = 15

∴ 3x

_{1}= 12 ∴ x

_{1}= 4 ∴ P is (4, 3)

The values of objective function z = 4x

_{1}+ 3x

_{2}at these vertices are

z(O) = 4(0) + 3(0) = 0 + 0 = 0

z(a) = 4(5) + 3(0) = 20 + 0 = 20

z(P) = 4(4) + 3(3) = 16 + 9 = 25

z(D) = 4(0) + 3(6) = 0 + 18 = 18

∴ z has maximum value 25 when x = 4 and y = 3.

**(ii) Maximize z = 60x + 50y subject to x + 2y ≤ 40, 3x + 2y ≤ 60, x ≥ 0, y ≥ 0Solution:**
We first draw the lines AB and CD whose equations are x + 2y = 40 and 3x + 2y = 60 respectively.

The feasible region is OCPBO which is shaded in the graph.

The vertices of the feasible region are O (0, 0), C (20, 0), P and B (0, 20).

P is the point of intersection of the lines.

3x + 2y = 60 … (1)

and x + 2y = 40 … (2)

On subtracting, we get

2x = 20 ∴ x = 10

Substituting x = 10 in (2), we get

10 + 2y = 40

∴ 2y = 30 ∴ y = 15 ∴ P is (10, 15)

The values of the objective function z = 60x + 50y at these vertices are

z(O) = 60(0) + 50(0) = 0 + 0 = 0

z(C) = 60(20) + 50(0) = 1200 + 0 = 1200

z(P) = 60(10) + 50(15) = 600 + 750 = 1350

z(B) = 60(0) + 50(20) = 0 + 1000 = 1000 .

∴ z has maximum value 1350 at x = 10, y = 15.

**(iii) Maximize z = 4x + 2y subject to 3x + y ≥ 27, x + y ≥ 21, x + 2y ≥ 30; x ≥ 0, y ≥ 0Solution:**

We first draw the lines AB, CD and EF whose equations are 3x + y = 27, x + y = 21, x + 2y = 30 respectively.

The feasible region is XEPQBY which is shaded in the graph.

The vertices of the feasible region are E (30,0), P, Q and B (0,27).

P is the point of intersection of the lines

x + 2y = 30 … (1)

and x + y = 21 … (2)

On subtracting, we get

y = 9

Substituting y = 9 in (2), we get

x + 9 = 21 ∴ x = 12

∴ P is (12, 9)

Q is the point of intersection of the lines

x + y = 21 … (2)

and 3x + y = 27 … (3)

On subtracting, we get

2x = 6 ∴ x = 3

Substituting x = 3 in (2), we get

3 + y = 21 ∴ y = 18

∴ Q is (3, 18).

The values of the objective function z = 4x + 2y at these vertices are

z(E) = 4(30) + 2(0) = 120 + 0 = 120

z(P) = 4(12) + 2(9) = 48 + 18 = 66

z(Q) = 4(3) + 2(18) = 12 + 36 = 48

z(B) = 4(0) + 2(27) = 0 + 54 = 54

∴ z has minimum value 48, when x = 3 and y = 18.

**Question 7.A carpenter makes chairs and tables. Profits are ₹140/- per chair and ₹ 210/- per table. Both products are processed on three machines : Assembling, Finishing and Polishing. The time required for each product in hours and availability of each machine is given by following table:Formulate the above problem as L.P.P. Solve it graphically to get maximum profit.Solution:**
Let the number of chairs and tables made by the carpenter be x and y respectively.

The profits are ₹ 140 per chair and ₹ 210 per table.

∴ total profit z = ₹ (140x + 210y) This is the objective function which is to be maximized.

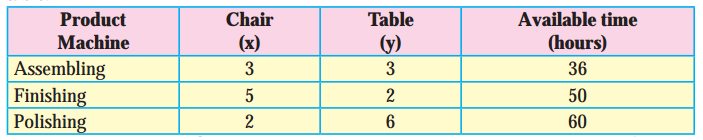

The constraints are as per the following table :

From the table, the constraints are

3x + 3y ≤ 36, 5x + 2y ≤ 50, 2x + 6y ≤ 60.

The number of chairs and tables cannot be negative.

∴ x ≥ 0, y ≥ 0

Hence, the mathematical formulation of given LPP is :

Maximize z = 140x + 210y, subject to

3x + 3y ≤ 36, 5x + 2y ≤ 50, 2x + 6y ≤ 60, x ≥ 0, y ≥ 0.

We first draw the lines AB, CD and EF whose equations are 3x + 3y = 36, 5x + 2y = 50 and 2x + 6y = 60 respectively.

The feasible region is OCPQFO which is shaded in the graph.

The vertices of the feasible region are O (0, 0), C (10, 0), P, Q and F (0, 10).

P is the point of intersection of the lines

5x + 2y = 50 … (1)

and 3x + 3y = 36 … (2)

Multiplying equation (1) by 3 and equation (2) by 2, we get

15x + 6y = 150

6x + 6y = 72

On subtracting, we get 26

Q is the point of intersection of the lines

3x + 3y = 36 … (2)

and 2x + 6y = 60 … (3)

Multiplying equation (2) by 2, we get

6x + 6 y = 72

Subtracting equation (3) from this equation, we get

4x = 12 ∴ x = 3

Substituting x = 3 in (2), we get

3(3) + 3y = 36

∴ 3y = 27 ∴ y = 9

∴ Q is (3, 9).

Hence, the vertices of the feasible region are O (0, 0),

The values of the objective function z = 140x + 210y at these vertices are

z(O) = 140(0) + 210(0) = 0 + 0 = 0

z(C) = 140 (10) + 210(0) = 1400 + 0 = 1400

z(Q) = 140(3) + 210(9) = 420 + 1890 = 2310

z(F) = 140(0) + 210(10) = 0 + 2100 = 2100

∴ z has maximum value 2310 when x = 3 and y = 9 Hence, the carpenter should make 3 chairs and 9 tables to get the maximum profit of ₹ 2310.

**Question 8.A company manufactures bicycles and tricycles, each of which must be processed through two machines A and B. Maximum availability of Machine A and B is respectively 120 and 180 hours. Manufacturing a bicycle requires 6 hours on Machine A and 3 hours on Machine B. Manufacturing a tricycles requires 4 hours on Machine A and 10 hours on Machine B. If profits are ₹180/- for a bicycle and ₹220/- for a tricycle. Determine the number of bicycles and tricycles that should be manufactured in order to maximize the profit.Solution:**

Let x bicycles and y tricycles are to be manu¬factured. Then the total profit is z = ₹ (180x + 220y)

This is a linear function which is to be maximized. Hence, it is the objective function. The constraints are as per the following table :

From the table, the constraints are

6x + 4y ≤ 120, 3x +10y ≤ 180

Also, the number of bicycles and tricycles cannot be i negative.

∴ x ≥ 0, y ≥ 0.

Hence, the mathematical formulation of given LPP is :

Maximize z = 180x + 220y, subject to

6x + 4y ≤ 120, 3x + 10y ≤ 180, x ≥ 0, y ≥ 0.

First we draw the lines AB and CD whose equations are 6x + 4y = 120 and 3x + 10y = 180 respectively.

The feasible region is OAPDO which is shaded in the graph.

The vertices of the feasible region are O(0, 0), A(20, 0) P and D(0, 18).

P is the point of intersection of the lines

3x + 10y = 180 … (1)

and 6x + 4y = 120 … (2)

Multiplying equation (1) by 2, we get

6x + 20y = 360

Subtracting equation (2) from this equation, we get

16y = 240 ∴ y = 15

∴ from (1), 3x + 10(15) = 180

∴ 3x = 30 ∴ x = 10

∴ P = (10, 15)

The values of the objective function z = 180x + 220y at these vertices are

z(O) = 180(0) + 220(0) = 0 + 0 = 0

z(a) = 180(20) + 220(0) = 3600 + 0 = 3600

z(P) = 180(10) + 220(15) = 1800 + 3300 = 5100

z(D) = 180(0) +220(18) = 3960

∴ the maximum value of z is 5100 at the point (10, 15).

Hence, 10 bicycles and 15 tricycles should be manufactured in order to have the maximum profit of ₹ 5100.

**Question 9.A factory produced two types of chemicals A and B. The following table gives the units of ingredients P and Q (per kg) of chemicals A and B as well as minimum requirements of P and Q and also cost per kg. chemicals A and B :Find the number of units of chemicals A and B should be produced so as to minimize the cost.Solution:**

Let the factory produce x units of chemical A and y units of chemical B. Then the total cost is z = ₹ (4x + 6y). This is the objective function which is to be minimized.

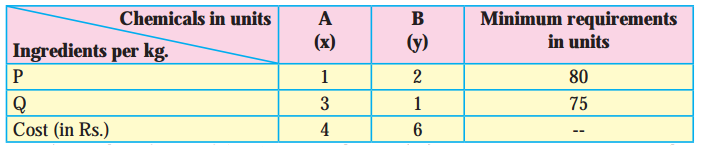

From the given table, the constraints are

x + 2y ≥ 80, 3x + y ≥ 75.

Also, the number of units x and y of chemicals A and B cannot be negative.

∴ x ≥ 0, y ≥ 0.

∴ the mathematical formulation of given LPP is

Minimize z = 4x + 6y, subject to

x + 2y ≥ 80, 3x + y ≥ 75, x ≥ 0, y ≥ 0.

First we draw the lines AB and CD whose equations are x + 2y = 80 and 3x + y = 75 respectively.

The feasible region is shaded in the graph.

The vertices of the feasible region are A (80, 0), P and D (0, 75).

P is the point of intersection of the lines

x + 2y = 80 … (1)

and 3x + y = 75 … (2)

Multiplying equation (2) by 2, we get

6x + 2 y = 150

Subtracting equation (1) from this equation, we get

5x = 70 ∴ x = 14

∴ from (2), 3(14) + y = 75

∴ 42 + y = 75 ∴ y = 33

∴ P = (14, 33)

The values of the objective function z = 4x + 6y at these vertices are

z(a) = 4(80)+ 6(0) =320 + 0 = 320

z(P) = 4(14)+ 6(33) = 56+ 198 = 254

z(D) = 4(0) + 6(75) = 0 + 450 = 450

∴ the minimum value of z is 254 at the point (14, 33).

Hence, 14 units of chemical A and 33 units of chemical B are to be produced in order to have the j minimum cost of ₹ 254.

**Question 10.A company produces mixers and food processors. Profit on selling one mixer and one food processor is ₹ 2,000/- and ₹ 3,000/- respectively. Both the products are processed through three Machines A, B, C. The time required in hours by each product and total time available in hours per week on each machine are as follows :How many mixers and food processors should be produced to maximize the profit?Solution:**
Let the company produce x mixers and y food processors.

Then the total profit is z = ₹ (2000x + 3000y)

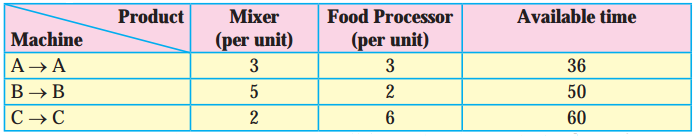

This is the objective function which is to be maximized. From the given table in the problem, the constraints are 3x + 3y ≤ 36, 5x + 2y ≤ 50, 2x + 6y ≤ 60

Also, the number of mixers and food processors cannot be negative,

∴ x ≥ 0, y ≥ 0.

∴ the mathematical formulation of given LPP is

Maximize z = 2000x + 3000y, subject to 3x + 3y ≤ 36, 5x + 2y ≤ 50, 2x + 6y ≤60, x ≥ 0, y ≥ 0.

First we draw the lines AB, CD and EF whose equations are 3x + 3y = 36, 5x + 2y = 50 and 2x + 6y = 60 respectively.

The feasible region is OCPQFO which is shaded in the graph.

The vertices of the feasible region are O(0, 0), C(10, 0), P, Q and F(0,10).

P is the point of intersection of the lines

3x + 3y = 36 … (1)

and 5x + 2y = 50 … (2)

Multiplying equation (1) by 2 and equation (2) by 3, we get

6x + 6y = 72

15x + 6y = 150

On subtracting, we get

Q is the point of intersection of the lines

3x + 3y = 36 … (1)

and 2x + 6y = 60 … (3)

Multiplying equation (1) by 2, we get

6x + 6y = 72

Subtracting equation (3), from this equation, we get

4x = 12

∴ x = 3

∴ from (1), 3(3) + 3y = 36

∴ 3y = 27

∴ y = 9

∴ Q = (3, 9)

The values of the objective function z = 2000x + 3000y at these vertices are

z(O) = 2000(0) + 3000(0) = 0 + 0 = 0

z(C) = 2000(10) + 3000(0) = 20000 + 0 = 20000

z(Q) = 2000(3) + 3000(9) = 6000 + 27000 = 33000

z(F) = 2000(0) + 3000(10) = 30000 + 0 = 30000

∴ the maximum value of z is 33000 at the point (3, 9).

Hence, 3 mixers and 9 food processors should be produced in order to get the maximum profit of ₹ 33,000.

**Question 11.A chemical company produces a chemical containing three basic elements A, B, C so that it has at least 16 liters of A, 24 liters of B and 18 liters of C. This chemical is made by mixing two compounds I and II. Each unit of compound I has 4 liters of A, 12 liters of B, 2 liters of C. Each unit of compound II has 2 liters of A, 2 liters of B and 6 liters of C. The cost per unit of compound I is ₹ 800/- and that of compound II is ₹ 640/-. Formulate the problem as L.P.P. and solve it to minimize the cost.Solution:**

Let the company buy x units of compound I and y units of compound II.

Then the total cost is z = ₹(800x + 640y).

This is the objective function which is to be minimized.

The constraints are as per the following table :

From the table, the constraints are

4x + 2y ≥ 16, 12x + 2y ≥ 24, 2x + 6y ≥ 18.

Also, the number of units of compound I and compound II cannot be negative.

∴ x ≥ 0, y ≥ 0.

∴ the mathematical formulation of given LPP is

Minimize z = 800x + 640y, subject to 4x + 2y ≥ 16, 12x + 2y ≥ 24, 2x + 6y ≥ 18, x ≥ 0, y ≥ 0.

First we draw the lines AB, CD and EF whose equations are 4x + 2y = 16, 12x + 2y = 24 and 2x + 6y = 18

The feasible region is shaded in the graph.

The vertices of the feasible region are E(9, 0), P, Q, and D(0, 12).

P is the point of intersection of the lines

2x + 6y = 18 … (1)

and 4x + 2y = 16 … (2)

Multiplying equation (1) by 2, we get 4x + 12y = 36

Subtracting equation (2) from this equation, we get

10y = 20

∴ y = 2

∴ from (1), 2x + 6(2) = 18

∴ 2x = 6

∴ x = 3

∴ P = (3, 2)

Q is the point of intersection of the lines

12x + 2y = 24 … (3)

and 4x + 2y = 16 … (2)

On subtracting, we get

8x = 8 ∴ x = 1

∴ from (2), 4(1) + 2y = 16

∴ 2y = 12 ∴ y = 6

∴ Q = (1, 6)

The values of the objective function z = 800x + 640y at these vertices are

z(E) = 800(9)+ 640(0) =7200 + 0 = 7200

z(P) = 800(3) + 640(2) = 2400 + 1280 = 3680

z(Q) = 800(1) + 640(6) =800 + 3840 =4640

z(D) = 800(0) + 640(12) = 0 + 7680 = 7680

∴ the minimum value of z is 3680 at the point (3, 2).

Hence, the company should buy 3 units of compound I and 2 units of compound II to have the minimum cost of ₹ 3680.

**Question 12.A person makes two types of gift items A and B requires the services of a cutter and a finisher. Gift item A requires 4 hours of cutter’s time and 2 hours of finisher’s time. B requires 2 hours of cutter’s time and 4 hours of finisher’s time. The cutter and finisher have 208 hours and 152 hours available times respectively every month. The profit of one gift item of type A is ₹ 75/- and on gift item B is ₹ 125/-. Assuming that the person can sell all the gift items produced, determine how many gift items of each type should he make every month to obtain the best returns?Solution:**

Let x: number of gift item A

y: number of gift item B

As numbers of the items are never negative

x ≥ 0; y ≥ 0

Total time required for the cutter = 4x + 2y

Maximum available time 208 hours

∴ 4x+ 2y ≤ 208

Total time required for the finisher 2x +4y

Maximum available time 152 hours

2x + 4y ≤ 152

Total Profit is 75x + 125y

∴ L.P.P. of the above problem is

Minimize z = 75x + 125y

Subject to 4x+ 2y ≤ 208

2x + 4y ≤ 152

x ≥ 0; y ≥ 0

Graphical solution

Corner points

Now, Z at

x = (75x + 125y)

O(0, 0) = 75 × 0 + 125 × 0 = 0

A(52,0) = 75 × 52 + 125 × 0 = 3900

B(44, 16) = 75 × 44 + 125 × 16 = 5300

C(0, 38) = 75 × 0 + 125 × 38 = 4750

A person should make 44 items of type A and 16 Uems of type Band his returns are ₹ 5,300.

**Question 13.A firm manufactures two products A and B on which profit earned per unit ₹3/- and ₹4/- respectively. Each product is processed on two machines M _{1} and M_{2}. The product A requires one minute of processing time on M_{1} and two minute of processing time on M_{2}, B requires one minute of processing time on M_{1} and one minute of processing time on M_{2}. Machine M_{1} is available for use for 450 minutes while M_{2} is available for 600 minutes during any working day. Find the number of units of product A and B to be manufactured to get the maximum profit.Solution:**

Let the firm manufactures x units of product

A and y units of product B.

The profit earned per unit of A is ₹3 and B is ₹ 4.

Hence, the total profit is z = ₹ (3x + 4y).

This is the linear function which is to be maximized.

Hence, it is the objective function.

The constraints are as per the following table :

From the table, the constraints are

x + y ≤ 450, 2x + y ≤ 600

Since, the number of gift items cannot be negative, x ≥ 0, y ≥ o.

∴ the mathematical formulation of LPP is,

Maximize z = 3x + 4y, subject to x + y ≤ 450, 2x + y ≤ 600, x ≥ 0, y ≥ 0.

Now, we draw the lines AB and CD whose equations are x + y = 450 and 2x + y — 600 respectively.

The feasible region is OCPBO which is shaded in the graph.

The vertices of the feasible region are O(0, 0), C(300, 0), P and B (0, 450).

P is the point of intersection of the lines

2x + y = 600 … (1)

and x + y = 450 … (2)

On subtracting, we get

∴ x = 150

Substituting x = 150 in equation (2), we get

150 + y = 450

∴ y = 300

∴ P = (150, 300)

The values of the objective function z = 3x + 4y at these vertices are

z(O) = 3(0) + 4(0) = 0 + 0 = 0

z(C) = 3(300) + 4(0) = 900 + 0 = 900

z(P) = 3(150) + 4(300) = 450 + 1200 = 1650

z(B) = 3(0) + 4(450) = 0 + 1800 = 1800

∴ z has the maximum value 1800 when x = 0 and y = 450 Hence, the firm gets maximum profit of ₹ 1800 if it manufactures 450 units of product B and no unit product A.

**Question 14.A firm manufacturing two types of electrical items A and B, can make a profit of ₹ 20/- per unit of A and ₹ 30/- per unit of B. Both A and B make use of two essential components a motor and a transformer. Each unit of A requires 3 motors and 2 transformers and each units of B requires 2 motors and 4 transformers. The total supply of components per month is restricted to 210 motors and 300 transformers. How many units of A and B should the manufacture per month to maximize profit? How much is the maximum profit?Solution:**

Let the firm manufactures x units of item A and y units of item B.

Firm can make profit of ₹ 20 per unit of A and ₹ 30 per unit of B.

Hence, the total profit is z = ₹ (20x + 30y).

This is the objective function which is to be maximized. The constraints are as per the following table :

From the table, the constraints are

3x + 2y ≤ 210, 2x + 4y ≤ 300

Since, number of items cannot be negative, x ≥ 0, y ≥ 0.

Hence, the mathematical formulation of given LPP is :

Maximize z = 20x + 30y, subject to 3x + 2y ≤ 210, 2x + 4y ≤ 300, x ≥ 0, y ≥ 0.

We draw the lines AB and CD whose equations are 3x + 2y = 210 and 2x + 4y = 300 respectively.

The feasible region is OAPDO which is shaded in the graph.

The vertices of the feasible region are O (0, 0), A (70, 0), P and D (0, 75).

P is the point of intersection of the lines

2x + 4y = 300 … (1)

and 3x + 2y = 210 … (2)

Multiplying equation (2) by 2, we get

6x + 4y = 420

Subtracting equation (1) from this equation, we get

∴ 4x = 120 ∴ x = 30

Substituting x = 30 in (1), we get

2(30) + 4y = 300

∴ 4y = 240 ∴ y = 60

∴ P is (30, 60)

The values of the objective function z = 20x + 30y at these vertices are

z(O) = 20(0) + 30(0) = 0 + 0 = 0

z(A) = 20(70) + 30(0) = 1400 + 0 = 1400

z(P) = 20(30) + 30(60) = 600 + 1800 = 2400

z(D) = 20(0) + 30(75) = 0 + 2250 = 2250

∴ z has the maximum value 2400 when x = 30 and y = 60. Hence, the firm should manufactured 30 units of item A and 60 units of item B to get the maximum profit of ₹ 2400.
